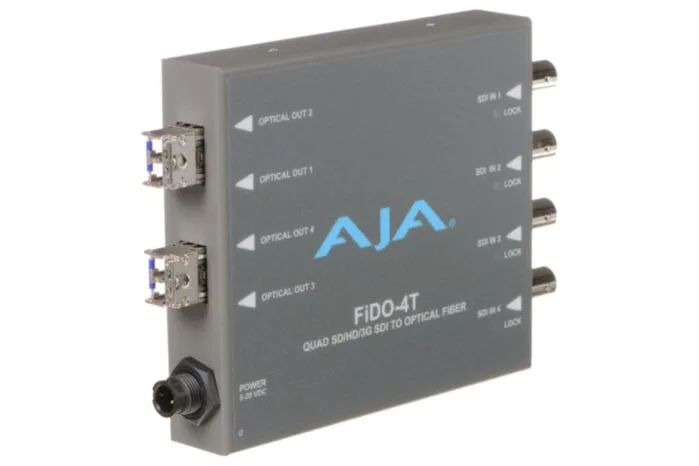

AJA FiDO-4T FiDO-4T-R0: 4-Channel 3G-SDI to Single-Mode LC Fiber Transmitter

AJA FiDO-4T - 4-Channel 3G-SDI to Single-Mode LC Fiber Transmitter Overview The AJA FiDO-4T is a compact and versatile 4-channel 3G-SDI to Single-Mode LC Fiber Transmitter designed for seamless integration into professional video workflows. It allows for the transmission of 3G-SDI signals over long distances up to 10 km (32,808 ft) via single-mode fiber optic cables, providing electrical isolation and eliminating ground loop issues. Key Features

• 4 independent channels of 3G-SDI input
• 4 simplex or 2 duplex output connections (LC connectors)
• Supports 3G-SDI, HD-SDI, and SD-SDI formats
• Transmission distance up to 10 km (32,808 ft) over single-mode fiber
• Compact, low-profile enclosure suitable for tight spaces
• Uses 5-20VDC power; universal power supply included
• Five-year warranty

Description The FiDO-4T offers unmatched flexibility and cost efficiency for SDI-to-fiber conversion, making it ideal for applications requiring long cable runs with electrical isolation. Its compact design allows for easy installation in tight spaces around equipment racks, trucks, and cameras. The transmitter supports 4 independent channels of 3G-SDI input, with 4 simplex or 2 duplex LC fiber output connections, facilitating the transmission of high-quality video signals over extended distances. Technical Specifications

• Video Formats: 150 Mbps - 3 Gbps, format agnostic
• Video Input Digital: 4-channel independent 3G-SDI BNC inputs, SMPTE-259/292/424
• Video Output Digital:
  • 4-channel independent Single-Mode LC Fiber outputs, SMPTE-297
  • Nominal Wavelength: 1310 nm
  • Optical Power: -5 dBm (min), 0 dBm (max)
  • Extinction Ratio: 7.5 dB (typical)
• Reclocking: 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select; all other rates are passed through and not reclocked
• Dimensions (W x D x H): 4.6" x 4.02" x 0.85" (117.0 x 102.11 x 21.6 mm)
• Weight: 0.8 lb (0.4 kg)
• Power: 5 watts max; uses 5-20VDC power; universal power supply included
• Environment:
  • Safe Operating Temperature: 0 to 40°C (32 to 104°F)
  • Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
