AJA FiDO-TR 1-Channel 3G-SDI/LC Single-Mode LC Fiber Transceiver

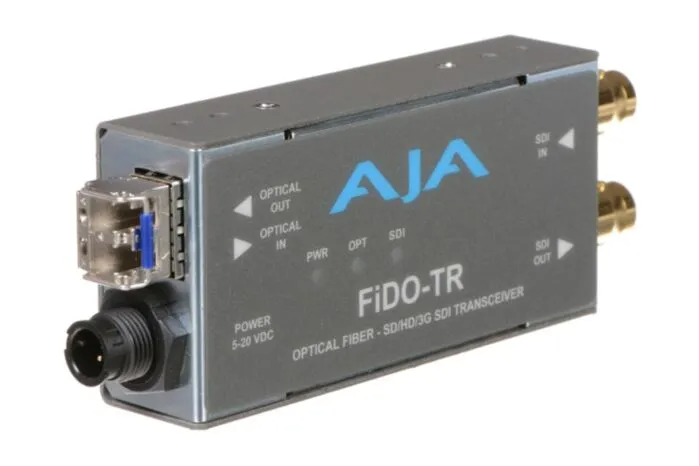

AJA FiDO-TR - 1-Channel 3G-SDI/LC Single-Mode LC Fiber Transceiver Overview The AJA FiDO-TR is a compact and cost-effective transceiver designed for bidirectional conversion between 3G-SDI and single-mode LC fiber optic signals. It enables long-distance signal transmission up to 10 km (32,808 ft) with electrical isolation, making it ideal for eliminating ground loop issues. The FiDO-TR's low-profile enclosure allows for easy installation in tight spaces around equipment racks, trucks, and cameras. Key Features

• Bidirectional Conversion: Supports one channel of 3G-SDI to LC fiber and one channel of LC fiber to 3G-SDI conversion, facilitating versatile signal routing.
• Long-Distance Transmission: Extends 3G-SDI signals over single-mode fiber optic cable up to 10 km (32,808 ft), suitable for remote production and broadcast applications.
• Compact and Portable Design: The low-profile enclosure fits seamlessly into confined spaces, including behind equipment racks and on camera rigs.
• Universal Power Supply: Includes a universal power adapter with international plug connections, accommodating global power standards.
• Robust Construction: Built to withstand varying environmental conditions, ensuring reliable performance in diverse settings.

Technical Specifications

• Video Formats: Supports data rates from 150 Mbps to 3 Gbps, format agnostic.
• Video Inputs:
  • 1x 3G-SDI BNC input, compliant with SMPTE-259/292/424 standards.
  • 1x single-mode LC fiber input, compliant with SMPTE-297 standard.
  • Nominal Wavelength: 1260-1620 nm.
  • Optical Sensitivity: -18 dBm (maximum).
  • Overload Power: -3 dBm (minimum).
• Video Outputs:
  • 1x 3G-SDI BNC output, compliant with SMPTE-259/292/424 standards.
  • 1x single-mode LC fiber output, compliant with SMPTE-297 standard.
  • Nominal Wavelength: 1310 nm.
  • Optical Power: -5 dBm (minimum), 0 dBm (maximum).
  • Extinction Ratio: 7.5 dB (typical).
• Reclocking: Automatic selection for 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, and 2.970 Gbps signals; all other rates are passed through without reclocking.
• Power:
  • Power Consumption: 3 watts (maximum).
  • Power Supply: 5-20 VDC input; universal power adapter included.
• Dimensions (W x D x H):
  • 4.6" x 1.71" x 0.85" (117.0 mm x 43.5 mm x 21.6 mm).
• Weight:
  • Approximately 0.4 lbs (0.2 kg).
• Operating Environment:
  • Operating Temperature: 0 to 40°C (32 to 104°F).
  • Storage Temperature: -40 to 60°C (-40 to 140°F).
  • Operating Relative Humidity: 10-90% non-condensing.
  • Operating Altitude: <3,000 meters (<10,000 feet).
