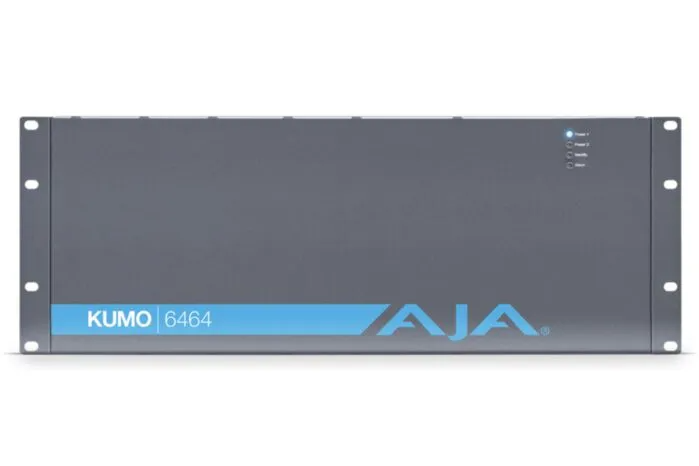

AJA KUMO 6464 Compact 64x64 3G-SDI Router
SKU
KUMO-6464-R0
£9,331.20
£7,776.00
In stock
The AJA KUMO 6464 is a compact 4RU 3G-SDI router featuring 64 inputs and 64 outputs, supporting HD and 4K/UltraHD signals. It offers network-based and physical control options, optional redundant power supply, and salvo support, making it ideal for high-density signal routing in space-constrained environments.
AJA KUMO 6464 - Compact 64x64 3G-SDI Router Overview The AJA KUMO 6464 is a compact 4RU router offering 64 inputs and 64 outputs of 3G-SDI video and audio. It supports any SDI-based signal up to 3G-SDI, including HD and 4K/UltraHD signals (in quad-link mode). Key Features
- High-Density Signal Routing: 64x 3G-SDI inputs and 64x 3G-SDI outputs in a compact 4RU frame, ideal for space-constrained environments.
- 4K/UltraHD Support: Capable of routing 4K/UltraHD signals using quad-link grouping, ensuring compatibility with high-resolution workflows.
- Network-Based and Physical Control: Offers web-based network control and is compatible with KUMO CP and CP2 control panels for versatile operation.
- Redundant Power Supply: Optional redundant power supply ensures continuous operation in critical applications.
- Salvo Support: Allows the creation of up to eight salvos for efficient and quick routing changes.
- Video Formats: Supports 270 Mbps, 1.5 Gbps, and 3 Gbps SDI, including 270 Mbps DVB-ASI.
- Video Inputs: 64x 3G-SDI BNC inputs, SMPTE-259/292/424 compliant.
- Video Outputs: 64x 3G-SDI BNC outputs, SMPTE-259/292/424 compliant.
- Reference Input: 2x BNC looping, non-terminating, supporting blackburst or tri-level sync.
- Network Interface: 1x RJ-45, 10/100/1000 Ethernet for network control and monitoring.
- Control Panel Compatibility: Compatible with AJA KUMO CP and KUMO CP2 control panels.
- Power Supply: 100-240 VAC, 50/60 Hz; optional redundant power supply available.
- Dimensions (W x D x H): 19" x 1.5" x 7" (482.6 mm x 38.1 mm x 177.8 mm).
- Weight: Approximately 9.26 lbs (4.2 kg).
| SKU | KUMO-6464-R0 |
|---|---|
| Manufacturer | AJA |
| In Stock | Y |
