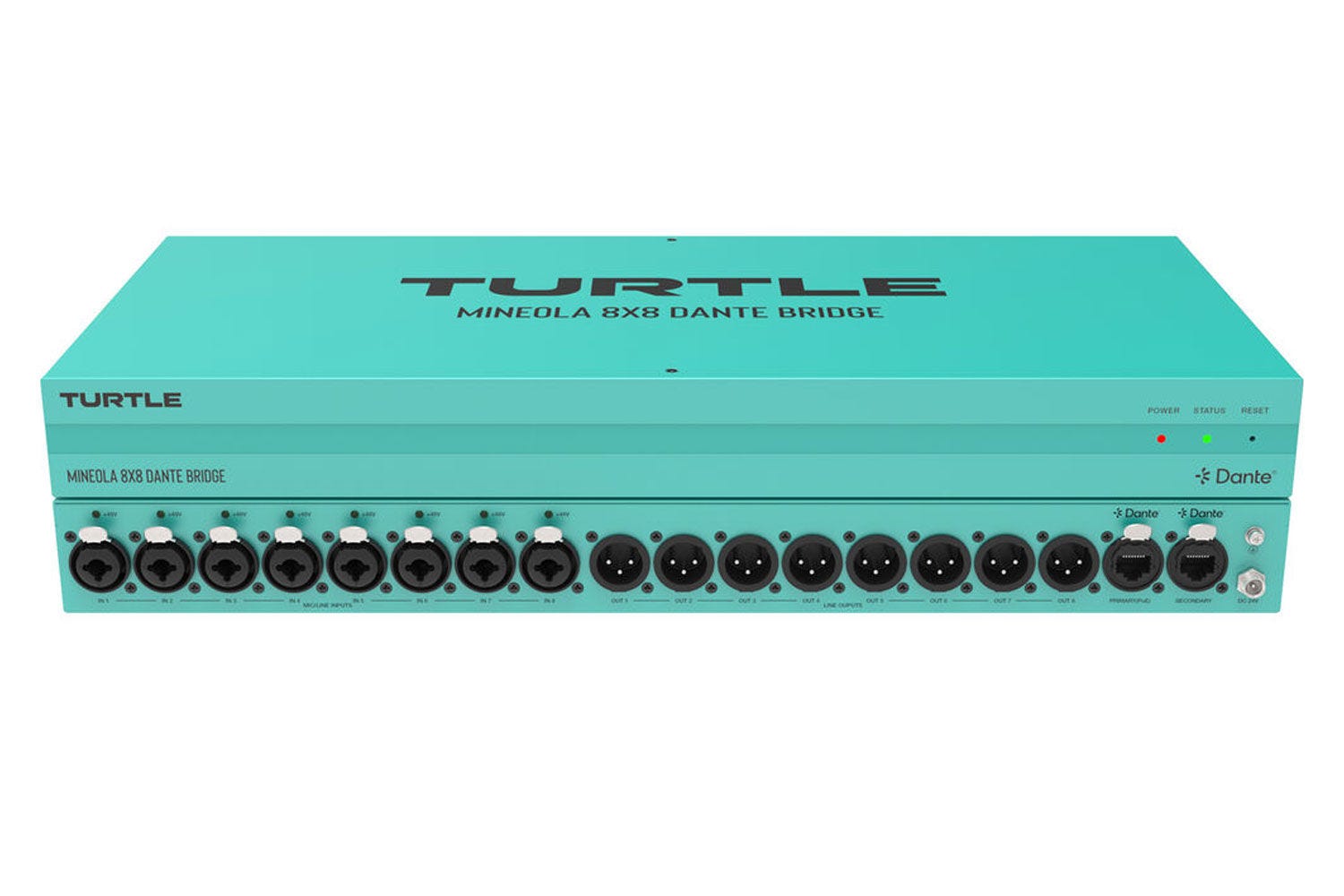

Turtle AV Mineola 8x8 Dante Audio Bridge. 8x XLR inputs with 48V Phantom Power, and 8x XLR outputs with locking etherCON network connector.

SKU / MPN: TAV-MINEOLA8XLR

The Mineola 8×8 Dante Audio Bridge offers a full 8-in / 8-out analog interface via XLR, allowing analog audio to be converted into and out of the Dante® digital network. All eight XLR inputs include 48 V phantom power. Dual Dante network ports (Primary & Secondary) help support redundancy, and all network connections use locking etherCON connectors. The unit can be powered either from PoE or a 12 V DC supply.

Built into a rugged all-metal 1U rackmount design (rackmount kit included), it is suitable for demanding environments and large scale setups. The product is TAA compliant and comes with a 5-year advance replacement warranty.

• 8× analog XLR inputs with 48 V phantom power
• 8× analog XLR outputs
• Primary and Secondary Dante network ports for redundancy
• Locking etherCON connectors for network ports; locking connectors throughout
• PoE or 12 V DC power options
• Includes rackmount kit; 1U form factor
• TAA compliant
• 5-year advance replacement warranty
