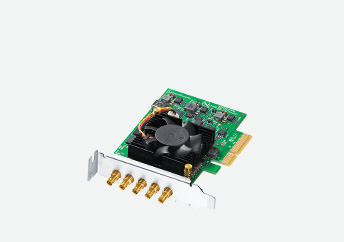

Blackmagic Design DeckLink Duo 2 Mini video capturing device Internal PCIe
SKU
BDLKDUO2LP
£516.24
£430.20
Out of stock
DeckLink Duo 2 Mini, 4x SDI, 16 channels, PCI E x4, 100 mm
| Product colour | Green |
|---|---|
| SKU | BDLKDUO2LP |
| EAN | 9338716006193 |
| Manufacturer | Blackmagic Design |
| Availability | Y |
Featuring 4 independent mini 3G-SDI connections, DeckLink Duo 2 Mini is a low profile, multi channel PCI Express capture and playback card that supports all SD and HD formats up to 1080p60! You get the flexibility of 4 separate capture or playback cards in one! Plus, it’s completely customizable so it’s perfect for media play-out systems, multi screen digital signage servers, real time multi channel capture systems and more!
| Performance | |
|---|---|
| Country of origin | Indonesia |
| Internal | Yes |
| Host interface | PCIe |
| Certification | FCC, CE, C-Tick |
| Interface | SDI |
| Product colour | Green |
| Technical details | |
| Country of origin | Indonesia |
| Internal | Yes |
| Host interface | PCIe |
| Interface | SDI |
| Product colour | Green |
| Video | |
| Analog signal format system | NTSC, PAL |
| Supported video modes | 720p, 1080i, 1080p |
| Video codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy |
| Ports & interfaces | |
| Composite video in | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| S-Video inputs quantity | 0 |
| Audio (L/R) in | 0 |
| Headphone outputs | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Software | |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Linux operating systems supported | Yes |
| Bundled software | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Certificates | |
| Certification | FCC, CE, C-Tick |
| Weight & dimensions | |
| Depth | 100 mm |
| Weight | 87.5 g |
| Packaging content | |
| Quantity | 1 |
| Manual | Yes |
| Logistics data | |
| Country of origin | Indonesia |
