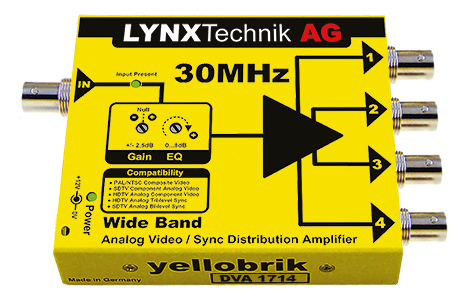

Lynx Technik yellobrik DVA 1714 Wide Band 1>4 Analog Video/Sync Distribution Amplifier

The DVA 1714 is a compact, general-purpose wide-band analog distribution amplifier suitable for analog SDTV and HDTV video signals. It can also be used for analog SDTV bi-level sync pulses, black reference, and analog HDTV tri-level sync pulses. Features include an input clamp with user-adjustable gain and cable equalization. LED indications are provided for signal presence and power.

Key Features

• 1 input and 4 outputs
• Wide band - 30MHz
• Adjustable gain and EQ
• Input clamp
• Input present LED indication
• Suitable for analog SDTV/HDTV video or sync signals

Technical Specifications

Input

• 1 x 75 Ohm BNC connector
• Compatible Input Sources:
  • SDTV Composite video (NTSC/PAL)
  • SDTV Component Analog Video
  • HDTV Component Analog Video
  • SDTV Bi-level sync (or black burst)
  • HDTV Tri-Level Sync
• Return loss: > 31dB to 30MHz
• Input gain adjustment range: +/- 2.5dB
• Input cable equalization adjustment: 0 - 8dB
• Input clamp
• Input presence detection (LED)

Outputs

• 4 x Analog Video / Sync Outputs
• 75 Ohm BNC connectors
• Return loss: >22dB to 30MHz

Performance

• Frequency Response:
  • -3dB @ 30MHz (EQ min)
  • -3dB @ 37MHz (EQ max)
  • +/- 0.1dB to 10MHz
• Signal to noise: >60dB (RMS)

Power

• +12VDC @ 1.3W nominal - (supports 8 - 24VDC input range)

Physical

• Size: 138mm x 90mm x 22mm (5.43” x 3.54” x 0.86”) - including connectors
• Weight: 220g (7.8oz)
• Ambient: 5 - 40ºC (41 - 104ºF) 90% Humidity (non-condensing)
