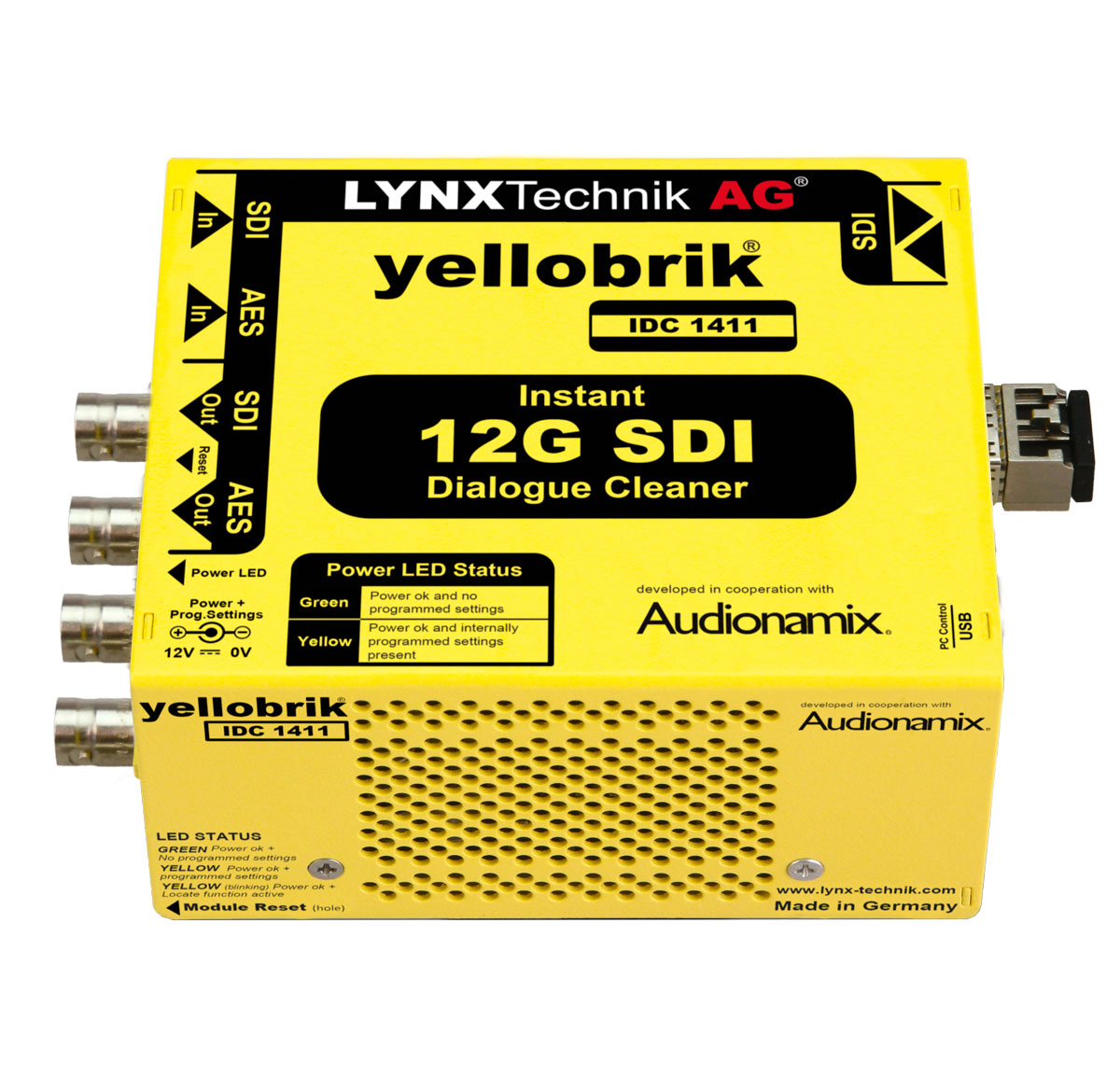

Lynx Technik yellobrik IDC 1411 AI based instant dialogue cleaner, filter and amplifier

The IDC 1411 is an advanced AI-based instant dialogue cleaner, filter, and amplifier designed to enhance speech clarity in broadcast and production environments. Utilizing Audionamix® technology, it removes background noise while preserving speech intelligibility, making it ideal for live broadcasts, post-production, and audio restoration. The module processes uncompressed SDI video formats and AES-based audio with automatic video and audio delay synchronization.

Key Features

• AI-based instant dialogue cleaner for real-time speech enhancement
• Removes background noise while preserving speech clarity
• Supports 1.5G, 3G, and 12G/4K SDI video input
• Processes AES audio input for digital audio workflows
• Automatic video delay synchronization with audio processing
• Supports optional 3G/12G fiber SFP for extended connectivity
• Configurable settings for speech gain, background gain, and compression
• Remote control via LynxCentraal or yelloGUI software

Technical Specifications

Video Input Digital

• 1x 12G-SDI BNC, SMPTE-292M/424M/2081-1/2082-1
• Single Link SD/HD/3G/UHD
• Supported formats:
  • UHD (3840x2160p) at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
  • 3G (1920x1080p) at 50, 59.94, 60 fps
  • HD (1920x1080p) at 23.98, 24, 25, 29.97, 30 fps
  • HD (1920x1080PsF) at 23.98, 24, 25, 29.97, 30 fps
  • HD (1920x1080i) at 50, 59.94, 60 fps
  • HD (1280x720p) at 50, 59.94, 60 fps

Video Output Digital

• 1x 12G-SDI BNC, SMPTE-292M/424M/2081-1/2082-1
• Single Link SD/HD/3G/4K UHD
• Mirrored SDI output with selectable routing to fiber or BNC

Audio Processing

• AI-based dialogue isolation and noise removal
• Configurable settings for speech gain, background gain, and compression
• Supports AES input for professional digital audio workflows

Control and Configuration

• Remote control via LynxCentraal software
• Compatible with yelloGUI for local configuration

Power Requirements

• Input Voltage: 12V DC nominal (supports 7-24V DC range)
• Power Consumption: Approx. 3.5W

Physical Characteristics

• Compact standalone design with robust build quality
• Compatible with LYNX Technik's rack-mounting solutions
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
