Lynx Technik yellobrik OBD 1210 MADI Coax to MADI Bidirectional Fiber Transceiver

The OBD 1210 system addresses the need for long-distance transmission of MADI signals by converting them between optical and coaxial formats. This bidirectional system supports up to 64 audio channels in both directions, making it ideal for applications requiring high-quality audio transmission over extended distances. The modules operate in real-time without introducing latency or degrading signal quality, ensuring reliable performance. Utilizing WDM optical multiplexing, the system requires a single bidirectional fiber link between the modules, supporting distances up to 10 km over single-mode fiber. It's important to note that this system is designed for point-to-point applications and cannot be integrated into a CWDM multiplexed system. :contentReference[oaicite:4]{index=4}

Key Features

• Bidirectional MADI send and receive over a single fiber link
• MADI Optical to MADI Coaxial conversion
• Supports up to 64 channels of audio (IN and OUT)
• Real-time conversion with no degradation of signal quality
• Closed-loop WDM fiber system
• Distances up to 10 km (6.2 miles) over single-mode fiber

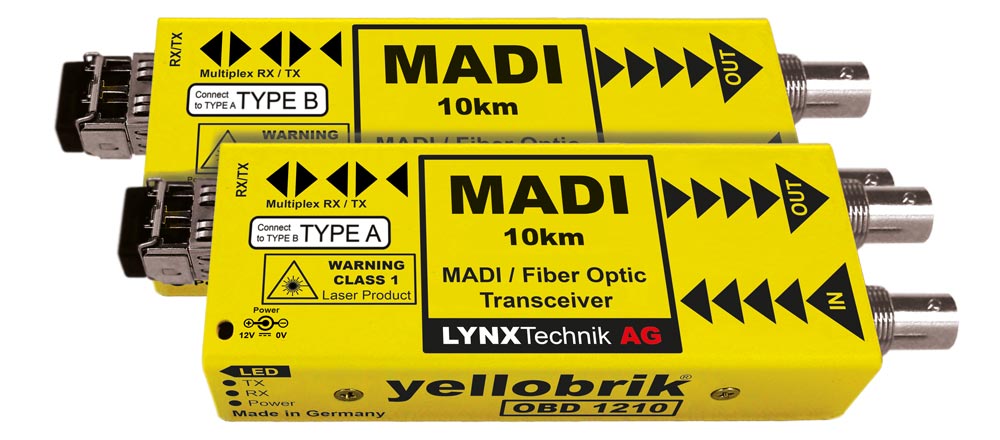

• Supplied as a matched pair (A and B version)
• Simplex LC single-mode optical connection
• Supports hot swapping and hot plugging

Technical Specifications

Coaxial Input

• 1 x 75 Ohm BNC connector
• Standard: AES10-2008
• Automatic cable equalization: up to 250m with Belden 1694A cable

Coaxial Output

• 1 x 75 Ohm BNC connector
• Amplitude: 750mV (Peak to Peak)
• Automatic cable equalization: up to 250m with Belden 1694A cable

Fiber Optic Interface

• 1 x Bidirectional fiber connection (LC/PC Connection)
• Wavelength:
  • Type A TX: 1310nm / RX: 1550nm (WDM)
  • Type B TX: 1550nm / RX: 1310nm (WDM)
• Optical power: -8dBm to -3dBm
• RX Sensitivity: -16dBm
• TX & RX active LED indicators on the side of the module
• Maximum distance: up to 10 km (6.2 miles)

Power Requirements

• Input voltage: +12V DC (supports 7 - 24V DC input range)
• Power consumption: Approximately 2.7W nominal
• Power LED indicator on the side of the module

Physical Characteristics

• Dimensions (including connectors): 140mm x 42mm x 22mm (5.51” x 1.65” x 0.86”)
• Weight: 125g (4.4oz) per module
• Operating temperature: 5°C to 40°C (41°F to 104°F)
• Humidity: Up to 90% (non-condensing)

Ordering Information

• OBD 1210: MADI Coax to MADI Bidirectional Fiber Transceiver - 10 km
• OH-TR-MADI-1310 MM: 1310nm Multimode Optical Transceiver
• RFR 1200: High-power yellobrik 19” 1RU Rack Frame
• RFR 1001: yellobrik Mounting Bracket
• LC/SC Sim: LC Connector to SC Connector Adapter Kit
• LC/ST Sim: LC Connector to ST Connector Adapter Kit
• P-TAP 1000: P-TAP Battery Adapter Cable
• XLR 1000: 4 Pin XLR Camera Battery Adapter Cable
