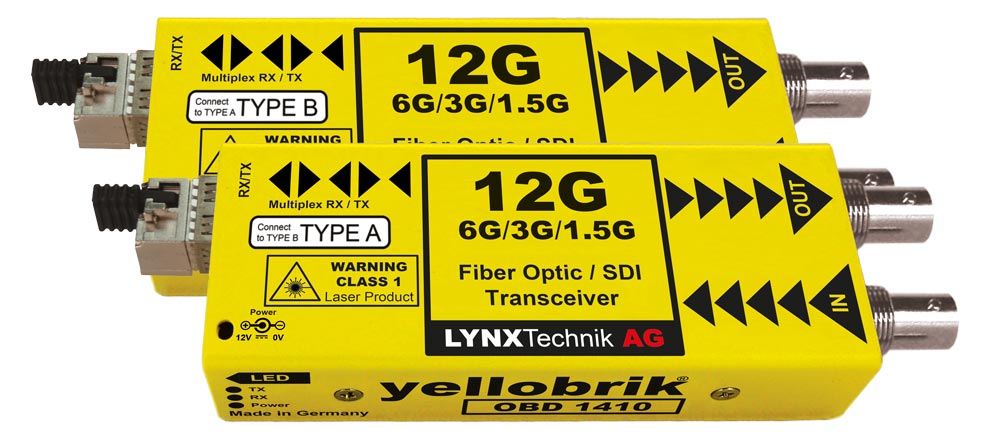

Lynx Technik yellobrik OBD 1410 12G Bidirectional SDI/Fiber Transceiver

The OBD 1410 is a compact bidirectional 12Gbit SDI/Fiber transceiver designed to enable high-quality, long-distance transmission and reception of SDI video signals over a single fiber link. Supporting data rates up to 12Gbit/s, it ensures reliable, error-free optical connectivity for professional broadcast applications. The module offers automatic reclocking and compatibility with multiple SDI formats, making it an ideal solution for 4K and UHD workflows.

Key Features

• Supports SDI video signals up to 12Gbit/s (2160p60)
• Bidirectional transmission and reception over a single fiber
• Auto reclocking at 1.5Gbit, 3Gbit, 6Gbit, and 12Gbit
• Supports 3Gbit Level A and Level B formats
• Compatible with all SMPTE standards for SDI transmission
• Transmission distances up to 10km (6.2 miles) over single-mode fiber
• Simplex LC/PC fiber connection with WDM technology
• Hot-swappable and hot-pluggable design for ease of use

Technical Specifications

SDI Video Inputs/Outputs

• 1 x SDI video input (75 Ohm BNC connector)
• 1 x SDI video output (75 Ohm BNC connector)
• Supports multi-standard operation from 270Mbit/s to 12Gbit/s
• Automatic reclocking for 270Mbit/s, 1.5Gbit/s, 3Gbit/s, 6Gbit/s, and 12Gbit/s

Fiber Optic Connection

• 1 x bidirectional LC/PC fiber connection
• Wavelengths:
  • Type A TX: 1270nm / RX: 1330nm
  • Type B TX: 1330nm / RX: 1270nm (WDM)
• Maximum transmission distance: 10km (6.2 miles) over single-mode fiber

Power Requirements

• Input Voltage: +12V DC nominal (supports 7 - 24V DC range)
• Power Consumption: 1.9W nominal

Physical Characteristics

• Compact and lightweight design
• Dimensions: 140mm x 42mm x 22mm (5.51” x 1.65” x 0.86”) including connectors
• Weight: 125g (4.4oz)
