Lynx Technik yellobrik - OBD 1510 D RS232/422/485 Serial and GPI Bidirectional Fiber Transceiver

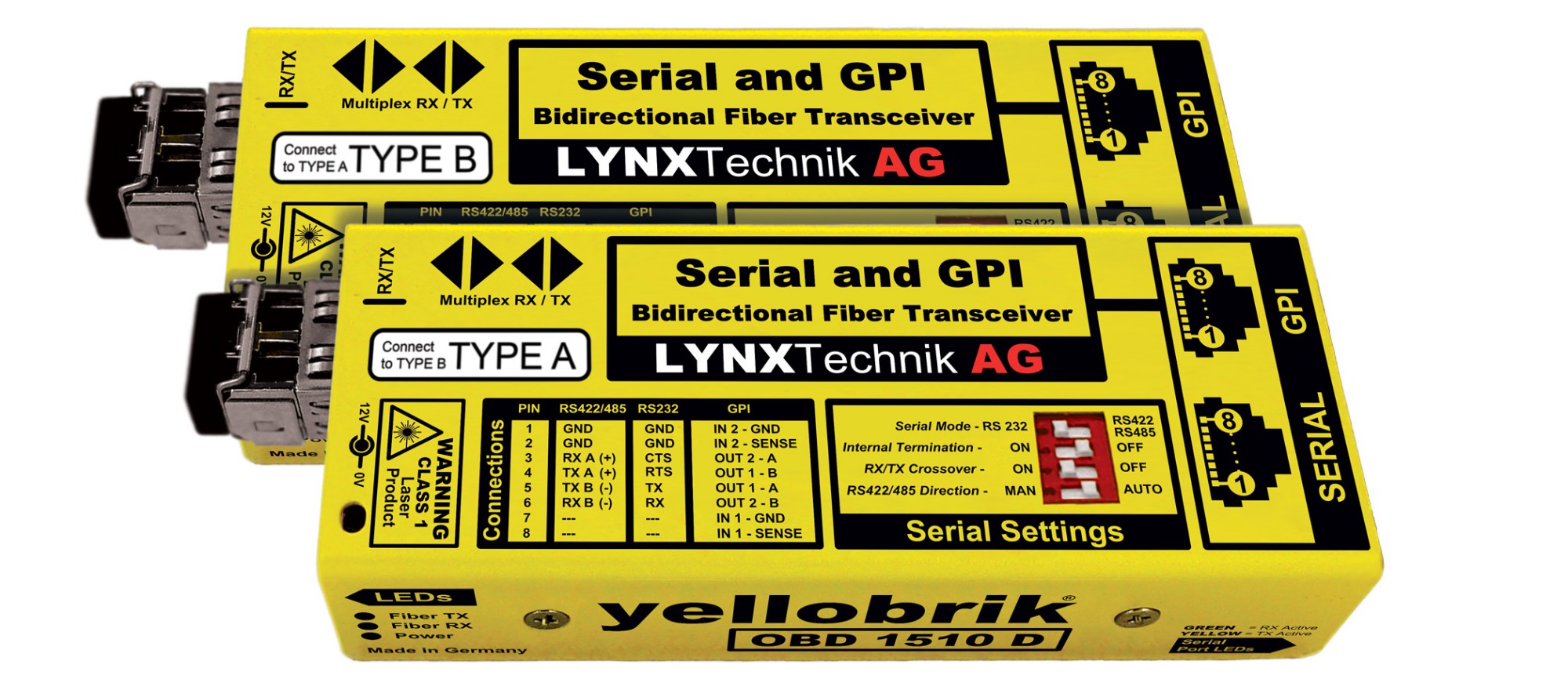

The Yellobrik OBD 1510 D is a versatile bidirectional fiber transceiver designed to extend serial RS232, RS422, or RS485 communications, along with two General Purpose Interface (GPI) connections, over distances up to 10 km (6.2 miles) using a single bidirectional fiber link (WDM). This module is ideal for applications requiring long-distance serial data and GPI transmission.

Key Features

• Bidirectional transmission over a single fiber link
• Extends serial and GPI connections up to 10 km
• Supports RS232, RS422, or RS485 serial standards
• Provides 2 GPI connections
• Utilizes single-mode fiber with LC/PC duplex connections
• Features switchable RX/TX crossover
• Offers automatic or manual data direction control
• Includes switchable end-of-line termination
• Plug-and-play design with no need for PC software drivers
• Supports all serial protocols (standard or proprietary)
• Auto-sensing and auto-adjusting baud rates from 300 to 460K

Technical Specifications

Serial Interface

• Configurable for RS232, RS422, or RS485 via RJ45 connector
• Supports baud rates from 300 to 460K (auto-sensing and auto-adjusting)
• Switchable RX/TX crossover
• Automatic or manual data direction control for RS422/485
• Switchable end-of-line termination
• Data activity LEDs for monitoring

GPI Interface

• 2 GPI inputs and outputs via RJ45 connector
• Data activity LEDs for monitoring

Fiber Optic Interface

• Single-mode fiber with LC/PC duplex connections
• Supports distances up to 10 km (6.2 miles)
• Wavelength Division Multiplexing (WDM) for bidirectional transmission over a single fiber

Power

• 12V DC power input
• Power consumption: 2.0W

Physical

• Dimensions: 105mm x 95mm x 22mm (4.13” x 3.74” x 0.87”)
• Weight: 200g (7.05oz)

Environmental

• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Storage temperature: -30°C to 70°C (-22°F to 158°F)
• Relative humidity: 10% to 90% non-condensing
