Lynx Technik yellobrik OBD 1514 E Bidirectional Ethernet to Fiber Transceiver (switch)

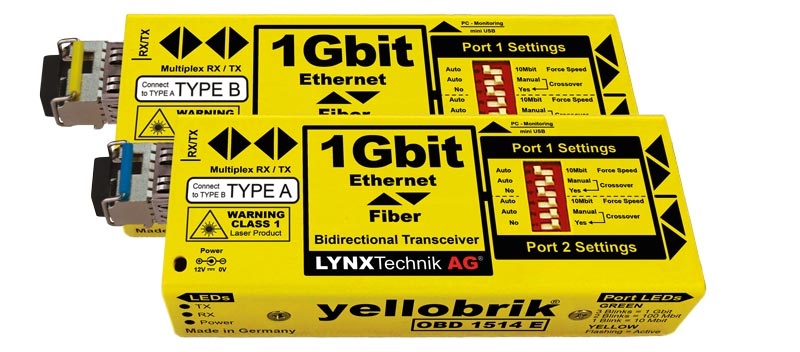

The OBD 1514 E is a matched pair of compact Ethernet switches designed to extend the reach of electrical Ethernet signals over long distances. Linked via a single bidirectional fiber link operating at a constant 1 Gbit/s speed, these modules utilize WDM (Wavelength Division Multiplexing) technology in a closed-loop arrangement, effectively functioning as an Ethernet extender solution. The fiber link supports distances up to 10 km*, providing a high-speed, error-free optical connection between two locations.

Key Features

• Bidirectional send and receive over a single fiber link
• Supports standard Ethernet inputs up to 1 Gbit/s
• Closed-loop WDM fiber system
• 3-port Ethernet switch (1 fiber, 2 electrical)
• Auto (10/100/1000) port speed detection
• Option to manually force 10 Mbit/s electrical speed if needed
• Fiber transceiver speed is always 1 Gbit/s
• Auto or manual electrical crossover selection
• Supports distances up to 10 km (6.2 miles)* over single-mode fiber

Technical Specifications

Ethernet Ports

• 2 x Ethernet ports, RJ45 connectors
• 10 Base-T UTP category 3, 4, or 5 cable up to 100 m (328 ft) (2 pairs)
• 100 Base-TX UTP category 5 cable up to 100 m (328 ft) (2 pairs)
• 1000 Base-TX UTP category 5 cable up to 100 m (328 ft) (4 pairs)
• Auto-detect bit rate (10/100/1000) or force to 10 Mbit/s for each port (selectable)
• Automatic crossover detection or force manually for each port (selectable)
• Port speed/activity LED indication (next to Ethernet port)

Fiber Optic

• 1 x fiber optic input/output per module
• Full Duplex (single-mode) using LC/PC connections
• Type A: OH-BD-51-1310-LC
• Type B: OH-BD-51-1550-LC
• IEEE 802.3z (1000BASE-X Gbit/s Ethernet over Fiber at 1 Gbit/s (125 MB/s))
• TX and RX active LEDs on side of module
• Maximum distance approximately 10 km* (6.2 miles - single-mode)

Power Requirements

• Input Voltage: +12V DC (supports 7 - 22V DC input range)
• Power Consumption: 1.7W nominal without SFP

Physical Characteristics

• Dimensions (including connectors): 120 mm x 42 mm x 22 mm (4.73” x 1.65” x 0.86”)
• Weight: 125 g (4.4 oz)
• Operating Temperature: 5°C to 40°C (41°F to 104°F)
• Humidity: Up to 90% (non-condensing)

*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. It is recommended to determine link losses and perform optical budget calculations to ensure correct operation.
