Lynx Technik yellobrik OBD 1810-2 3G Bidirectional SDI/Fiber Transceiver

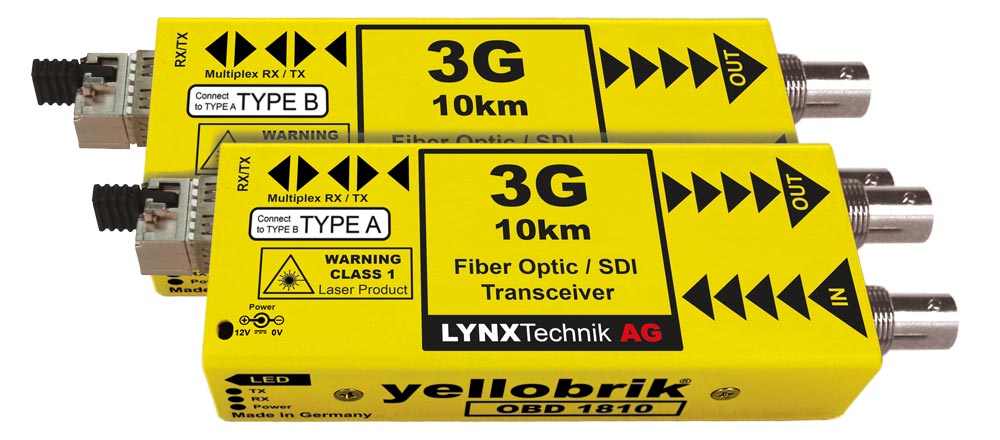

The OBD 1810-2 is a bidirectional fiber optic to SDI transmitter and receiver pair designed for the transmission and reception of uncompressed broadcast-quality video signals over long distances. Utilizing a single fiber link in a compact, self-contained package, this solution effectively addresses the limitations associated with SDI signal distribution. Supplied as a pair—Type A and Type B—the modules operate in a WDM closed-loop application, each featuring an electrical SDI input and output, and utilizing a single fiber link between them. Each channel functions independently, supporting different standards and formats of SDI video. The modules auto-detect and re-clock any 270Mbit/s, 1.5Gbit/s, and 3Gbit/s SDI source prior to conversion, and are fully compatible with 3G Level A and Level B formats.

Key Features

• Supports SDI video up to 3Gbit/s (1080p60)
• 3Gbit Level A and Level B support (all formats)
• Auto reclocking at 270Mbit/s, 1.48Gbit/s, and 2.97Gbit/s
• Bidirectional transmission and reception over a single fiber link
• Error-free optical connections
• Supports distances up to 10 km (6.2 miles) at 3Gbit/s
• Simplex LC/PC single-mode fiber connection
• Supports hot swapping and hot plugging

Technical Specifications

SDI Video Inputs/Outputs

• 1 x SDI input on 75 Ohm BNC connector
• 1 x SDI output on 75 Ohm BNC connector
• Compliant with SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
• Multi-standard operation from 270 Mbit/s to 3 Gbit/s
• Multi-rate reclocking: 270 Mbit/s, 1.48 Gbit/s, 2.97 Gbit/s
• Return Loss: >15 dB to 1.5 GHz and >10 dB up to 3 GHz
• Automatic cable equalization (Belden 1694A cable):
  • Up to 250 m (820 ft) at 270 Mbit/s
  • Up to 140 m (459 ft) at 1.5 Gbit/s
  • Up to 80 m (262 ft) at 3 Gbit/s

Fiber Optic Interface

• Simplex (single-mode) using LC/PC connections
• Wavelengths:
  • Type A (OH-BD-1-1310-LC): TX at 1310 nm, RX at 1550 nm
  • Type B (OH-BD-1-1550-LC): TX at 1550 nm, RX at 1310 nm
• TX Optical Power: -8 dBm to -3 dBm
• RX Sensitivity: -16 dBm
• Maximum distance: up to 10 km (6.2 miles) at 3 Gbit/s*
• TX and RX active LEDs on the side of the module

Power Requirements

• Input Voltage: +12V DC (supports 7 - 24V DC input range)
• Power Consumption: approximately 2.0W

Physical Characteristics

• Dimensions (including connectors): 120 mm x 42 mm x 22 mm (4.73” x 1.65” x 0.86”)
• Weight: 125 g (4.4 oz)
• Operating Temperature: 5°C to 40°C (41°F to 104°F)
• Humidity: up to 90% (non-condensing)

*Note: Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. It is recommended to determine link losses and perform optical budget calculations to ensure correct operation.
