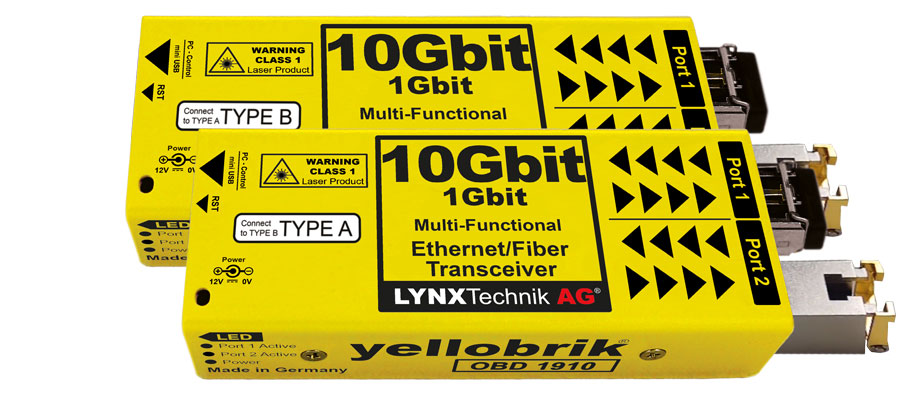

Lynx Technik yellobrik OBD 1910 10Gbit/s Ethernet to Fiber bidirectional Transceiver

The OBD 1910 kit is a straightforward, plug-and-play solution designed to extend 1Gbit/s or 10Gbit/s electrical Ethernet networks over long distances using a single bidirectional fiber link. Traditional setups require separate fibers for transmission and reception; however, the OBD 1910 employs WDM (Wavelength Division Multiplexing) technology to facilitate both directions over a single singlemode fiber, effectively doubling efficiency and reducing infrastructure costs. This kit includes two modules and two power supplies, ensuring a seamless setup without complex configurations.

Key Features

• Supports standard Ethernet/Optical signals at 10Gbit/s or 1Gbit/s
• Extends 10G Ethernet up to 30 km (18.6 miles) over a single bidirectional fiber link
• Maximum throughput of 20Gbit/s (full-duplex)
• Includes two modules and two power supplies
• Power and signal present LED indication
• Simple plug-and-play operation
• Supports hot swapping and hot plugging

Technical Specifications

Transceiver Ports

• Two 10Gbit/s SFP+ slots (Port 1 & Port 2)
• Supports 10GBase-T SFP, 10GBase-X, 1000Base-T
• Compliant with IEEE 802.3ae standards

Port 1: Bidirectional Optical Transceiver SFP

• Wavelengths: 1270nm and 1330nm (WDM)
• Simplex LC connector
• TX Optical Power: 0 to 5dBm
• RX Sensitivity: -15dBm
• Maximum distance: up to 30 km (~18.6 miles)*

Port 2: Multimode Optical Transceiver SFP

• Wavelength: 850nm
• Duplex LC connector
• TX Optical Power: -6 to -1dBm
• RX Sensitivity: -11dBm
• Maximum distance: up to 300m (~984.2 ft) over 50/125µ OM3 fiber*

Electrical Transceiver Option

• 10Gbit/s Base Electrical I/O SFP
• RJ-45 connector via Cat6a/Cat7 cable
• Maximum distance: up to 30m (~98.4 ft)*

Indicators

• Three LEDs:
  • Power LED
  • Two Signal Present LEDs

Power Requirements

• Input Voltage: +12V DC (supports 7 - 15V DC input range)
• Power Consumption: Approximately 4W with SFPs

Physical Characteristics

• Dimensions (per module, including connectors): 120mm x 42mm x 22mm (4.73” x 1.65” x 0.86”)
• Weight (per module): 125g (4.4oz)
• Operating Temperature: 5°C to 40°C (41°F to 104°F)
• Humidity: Up to 90% (non-condensing)

*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of fiber cable and accumulated optical losses in the fiber link. It is recommended to determine link losses and perform optical budget calculations to ensure correct operation.
