Lynx Technik yellobrik OCM 1842 4 Channel CWDM Optical Mux/Demux (1350nm, 1370nm, 1390nm, 1410nm)

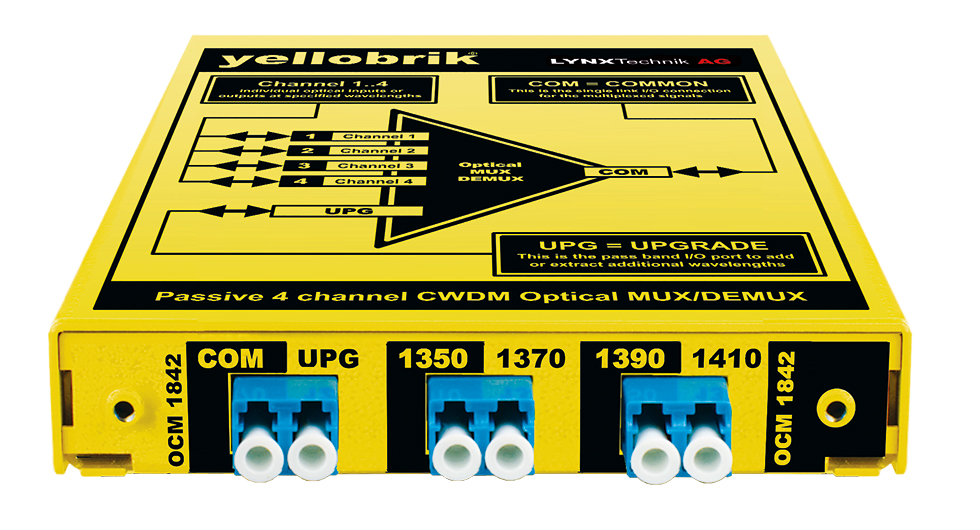

The Yellobrik OCM 1842 is a compact CWDM passive 4-channel optical multiplexer/demultiplexer designed to transmit and receive up to four individual signals over a single fiber link. Each module features an Upgrade (UPG) port, allowing cascading with other 4-channel modules to expand the system's capacity to a maximum of 16 channels. This flexibility makes the OCM 1842 ideal for efficiently managing multiple optical signals in broadcast and professional video applications.

Key Features

• Transmits and receives up to 4 channels over a single fiber link
• Passive operation requiring no power
• Expandable to 16 channels by combining up to four modules via the UPG port
• LC/PC single-mode optical connections for reliable performance
• Optional ½ RU 19” rack frame (RFR 1018) for organized module integration

Technical Specifications

Optical I/O

• 4 x Fiber Optic I/O channels with center frequencies at 1350nm, 1370nm, 1390nm, and 1410nm (per ITU-T G.694.2)
• 1 x COM (common) connection for multiplexed I/O
• 1 x UPG (Upgrade) I/O connection to interface with other OCM 184x modules
• LC/PC connectors suitable for single-mode fiber (SMF)
• Channel insertion loss: Nominal 1.35dB, Maximum 2.7dB
• UPG insertion loss: Nominal 1.35dB, Maximum 2.7dB
• Polarization dependent loss: Maximum 0.2dB
• Return loss: Greater than 45dB
• Isolation (to adjacent channel): Greater than 30dB
• Directivity: Greater than 55dB
• Temperature-dependent loss: Less than 0.005dB/ºC
• Temperature-dependent change of wavelength: Less than 0.003nm/ºC
• Maximum input power: 500mW
• Supports single or full duplex operation

Power

• None required (passive operation)

Physical

• Dimensions: Length 100mm (3.93”), Width 130mm (5.12”), Height 19mm (0.75”) including connectors
• Weight: 140g (4.9oz)
