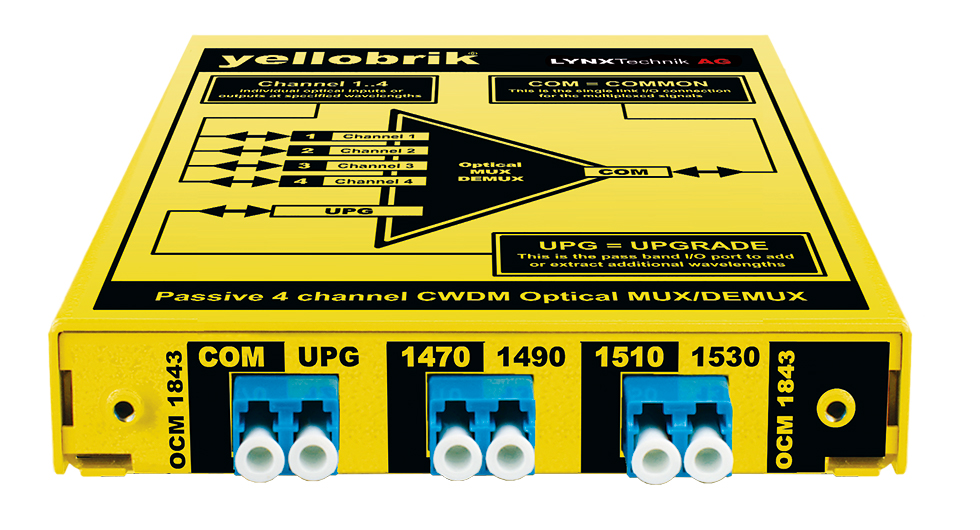

Lynx Technik yellobrik OCM 1843 4 Channel CWDM Optical Mux/Demux (1470nm, 1490nm, 1510nm, 1530nm)

The OCM 1843 is a compact CWDM passive 4-channel optical multiplexer/demultiplexer designed to transmit and receive up to four individual signals over a single fiber link. Each module features an UPG (Upgrade) port, allowing cascading with other 4-channel modules, thereby expanding the system's capacity to a maximum of 16 channels. The modules can function as standalone units or be integrated into the optional RFR 1018 1/2 RU 19” rack frame, which can accommodate all four modules, making them ideal for system installations. They are particularly well-suited for use with CWDM yellobrik fiber modules, covering all 16 wavelengths.

Key Features

• Transmit and receive up to 4 channels over a single fiber link
• Passive operation (no power required)
• Combine all four modules for up to 16 channels
• LC/PC single-mode optical connections
• Optional 1/2 RU 19” rack frame (RFR 1018)

Technical Specifications

Optical I/O

• 4 x Fiber Optic I/O channels
• Center wavelengths: 1470nm, 1490nm, 1510nm, 1530nm
• 1 x COM (common) connection for multiplexed I/O
• 1 x UPG (Upgrade) I/O connection for pass-band connection to other OCM 184x modules
• LC/PC connectors for single-mode fiber
• Channel Insertion loss: 1.35dB Nominal / 2.7dB Max.
• UPG Insertion loss: 1.35dB Nominal / 2.7dB Max.
• Polarization dependent loss: max 0.2dB
• Return Loss: > 45dB
• Isolation (to adjacent channel): > 30dB
• Directivity: > 55dB
• Temperature dependent loss: < 0.005dB/ºC
• Temperature dependent change of wavelength: < 0.003nm/ºC
• Max. input power: 500mW
• Supports single or full duplex operation

Power Requirements

• None required (passive operation)

Physical Characteristics

• Dimensions: 100mm x 130mm x 19mm (3.93” x 5.12” x 0.75”) including connectors
• Weight: 140g (4.9oz)
