Lynx Technik yellobrik OCM 1844 4 Channel CWDM Optical Mux/Demux (1550nm, 1570nm, 1590nm, 1610nm)

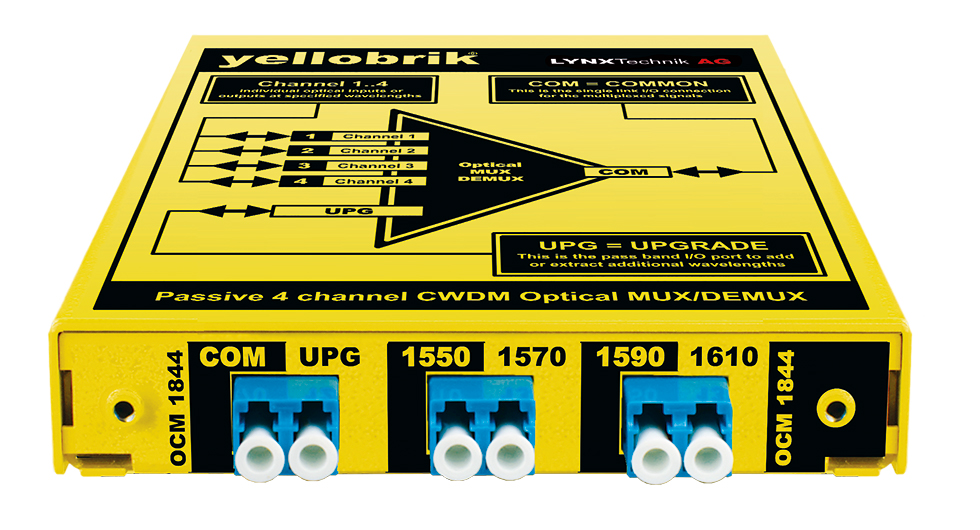

The OCM 1844 is a compact CWDM passive 4-channel optical multiplexer/demultiplexer designed to facilitate the transmission and reception of up to four individual signals over a single fiber link. Operating on wavelengths 1550nm, 1570nm, 1590nm, and 1610nm, this module includes an Upgrade (UPG) port that allows cascading with other 4-channel modules, enabling system expansion up to a maximum of 16 channels. The OCM 1844 can function as a standalone unit or be integrated into the optional RFR 1018 1/2 RU 19” rack frame, which can accommodate all four modules, making it ideal for system installations. This module is particularly well-suited for use with CWDM yellobrik fiber modules, as all 16 wavelengths are available. :contentReference[oaicite:5]{index=5}

Key Features

• Transmit and receive up to 4 channels over a single fiber link
• Passive operation (no power required)
• Combine all four modules for up to 16 channels
• LC/PC single-mode optical connections
• Optional 1/2 RU 19” rack frame (RFR 1018)

Technical Specifications

Optical Characteristics

• Wavelengths: 1550nm, 1570nm, 1590nm, 1610nm
• Channel Spacing: 20nm
• Channel Passband: ±6.5nm
• Adjacent Channel Isolation: ≥30dB
• Non-Adjacent Channel Isolation: ≥40dB
• Insertion Loss: ≤3.5dB
• Polarization Dependent Loss: ≤0.2dB
• Return Loss: ≥45dB

Optical Connections

• Line Port: 1 x LC/PC simplex (single-mode)
• Channel Ports: 4 x LC/PC simplex (single-mode)
• Upgrade Port: 1 x LC/PC simplex (single-mode)

Environmental Specifications

• Operating Temperature: -5°C to +65°C (23°F to 149°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95% (non-condensing)

Physical Characteristics

• Dimensions: 120 mm x 100 mm x 20 mm (4.72” x 3.94” x 0.79”)
• Weight: 200g (7.05 oz)

Compliance and Certifications

• RoHS Compliant
• CE Certified

Ordering Information

• OCM 1844: 4 Channel CWDM Optical Mux/Demux (1550nm, 1570nm, 1590nm, 1610nm)
• RFR 1018: yellobrik 0.5RU Rack Frame for passive fiber modules
