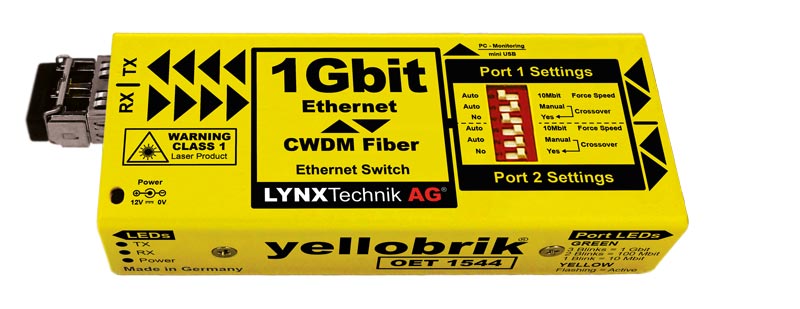

Lynx Technik yellobrik OET 1544 Ethernet to Fiber Transceiver (switch) - CWDM

The OET 1544 is a compact CWDM-compatible Ethernet 3-port switch designed to extend the reach of electrical Ethernet signals over long distances using a fixed high-speed 1 Gbit/s optical transceiver. It offers 18 selectable CWDM wavelengths, enabling integration into multiplexed CWDM environments. When paired with another OET 1544 at the receiving end (using two fiber links), it provides a cost-effective Ethernet extender system for distances up to 80 km (49.7 miles), ensuring a stable, high-speed, error-free optical connection between locations.

Key Features

• Supports standard Ethernet inputs up to 1 Gbit/s
• Functions as a 3-port Ethernet switch (1 fiber, 2 electrical)
• Auto (10/100/1000) port speed detection
• Option to manually force 10 Mbit/s electrical speed if needed
• Fiber transceiver speed is always 1 Gbit/s
• Auto or manual electrical crossover selection
• Supports distances up to 80 km (49.7 miles) over fiber
• Offers 18 CWDM wavelength selections (ITU-T G.694.2)

Technical Specifications

Electrical Ethernet Ports

• Two standard RJ45 ports
• Supports auto speed detection for 10/100/1000 Mbit/s
• Manual speed setting to 10 Mbit/s if required
• Auto or manual crossover selection

Fiber Optic Port

• Fixed 1 Gbit/s transceiver speed
• 18 selectable CWDM wavelengths (1270 nm - 1610 nm)
• Transmission distance up to 80 km (49.7 miles) over single-mode fiber*

Power Requirements

• Input Voltage: 12V DC nominal (supports 7-24V DC range)
• Power Consumption: Approximately 2.0W

Physical Characteristics

• Compact design suitable for standalone use or rack-mounted installation
• Compatible with LYNX Technik's RFR 1000-1 rack frame for up to 14 yellobrik modules
• Operating Temperature: 0°C to 50°C (32°F to 122°F)

*Note: Distance is an approximation. Actual distances achieved can vary depending on the type of fiber cable and accumulated optical losses in the fiber link. It is recommended to determine link losses and perform optical budget calculations to ensure correct operation.
