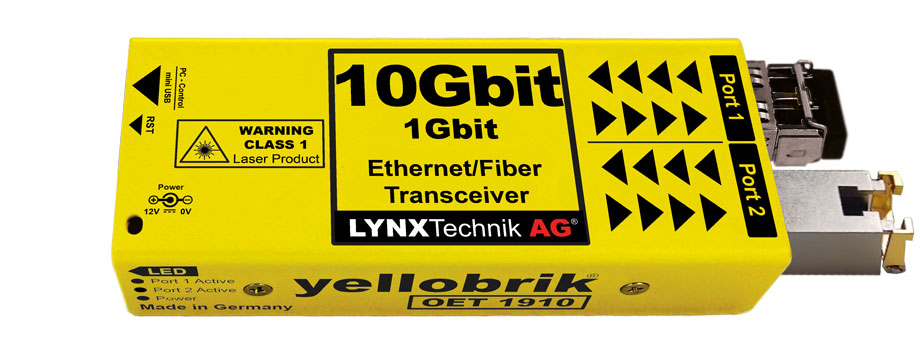

Lynx Technik yellobrik OET 1910 MM 10Gbit/s Ethernet to Fiber Transceiver

The OET 1910 is a versatile Ethernet-to-fiber optic converter that facilitates the extension of 1Gbit/s or 10Gbit/s Ethernet networks over significant distances. By converting electrical Ethernet signals to optical signals, it enables stable and high-speed connections between locations. When paired with another OET 1910 module using two fiber links, it provides a cost-effective solution for extending Ethernet networks up to 20 km (12.4 miles). The module supports both single-mode and multimode fiber options, catering to various networking requirements.

Key Features

• Supports standard Ethernet/Optical signals at 10Gbit/s or 1Gbit/s
• Allows Fiber to Copper and Copper to Fiber conversion
• Available in single-mode and multimode versions
• Two 10Gbit/s transceiver ports (Electrical/Optical) per module
• Maximum throughput of 20Gbit/s (full duplex)
• Distances up to 20 km (12.4 miles) over single-mode fiber*
• Power and signal present LED indication
• Supports hot swapping and hot plugging

Technical Specifications

SFP Slots

• 2 x 10 Gigabit SFP+ slots (Port 1 & 2)
• Supports 10GBase-T SFP, 10GBase-X, 1000Base-T
• Compliant with IEEE 802.3ae

Port 1: 10Gbit/s Base Optical Long Reach+ Transceiver SFP

• Wavelength: 1310 nm (single-mode)
• Connector: Duplex LC
• TX Optical Power: -3 to +1 dBm
• RX Sensitivity: -14.4 dBm
• Maximum Distance: Up to 20 km (12.4 miles)*

Port 1: 10Gbit/s Base Optical Multimode Transceiver SFP

• Wavelength: 850 nm (multimode)
• Connector: Duplex LC
• TX Optical Power: -5 to -1 dBm
• RX Sensitivity: -11.1 dBm
• Maximum Distance: Up to 300 m (984 ft)*

Port 2: 10Gbit/s Base Electrical Transceiver SFP

• Connector: RJ45
• Supports 10GBase-T, 1000Base-T
• Maximum Distance: Up to 100 m (328 ft) over Cat6a/Cat7 cable

Power Requirements

• Input Voltage: +12V DC
• Power Consumption: Approximately 3.5W
• Supports 7 - 24V DC input range

Physical Characteristics

• Dimensions: 105 mm x 95 mm x 22 mm (4.13” x 3.74” x 0.87”)
• Weight: 200 g (7.05 oz)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Humidity: 0% to 90% (non-condensing)

*Note: Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of fiber cable and accumulated optical losses in the fiber link. It is recommended to determine link losses and perform optical budget calculations to ensure correct operation.
