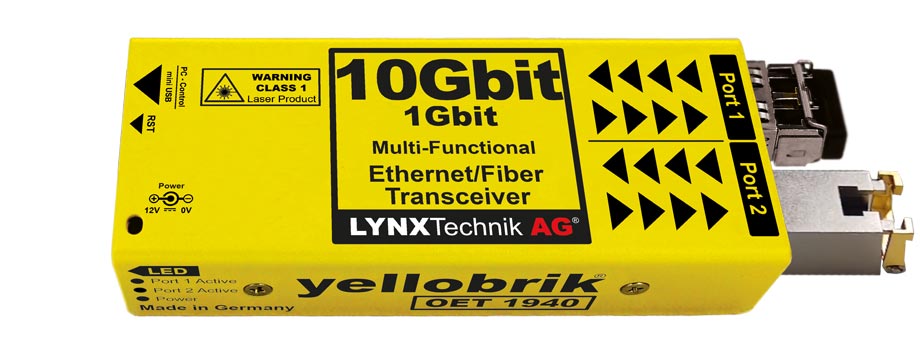

Lynx Technik yellobrik OET 1940 MC 10Gbit/s Ethernet to Fiber Transceiver

The OET 1940-MC transceiver facilitates the seamless conversion of multimode fiber optic Ethernet signals to CWDM single-mode fiber, enabling the extension of high-speed Ethernet connections over significant distances. This module includes a multimode SFP (Small Form-factor Pluggable) transceiver and requires the selection of an appropriate CWDM SFP to match the desired wavelength for CWDM multiplexing. By supporting standard Ethernet/Optical signals of 10Gbit/s or 1Gbit/s, the OET 1940-MC ensures compatibility with a wide range of network configurations, making it a flexible solution for integrating multimode fiber networks into CWDM infrastructures.

Key Features

• Converts multimode fiber optic Ethernet signals to CWDM single-mode fiber
• Supports standard Ethernet/Optical signals at 10Gbit/s or 1Gbit/s
• Two 10Gbit/s transceiver ports (electrical/optical) with a maximum throughput of 20Gbit/s (full duplex)
• Supports transmission distances up to 25 km (15.5 miles) over single-mode fiber*
• Power and signal present LED indicators
• Supports hot swapping and hot plugging

Technical Specifications

SFP Slots

• 2 x 10 Gigabit SFP+ slots (Port 1 & 2)
• Supports 10GBase-T SFP, 10GBase-X, 1000Base-T
• Compliant with IEEE 802.3ae

Port 1

• 10Gbit/s Base Optical CWDM Transceiver SFP (OET 1940-MC)
• Wavelength options: 1470nm to 1610nm (in 20nm increments)
• Duplex LC connector
• TX Optical Power: 0 to 4 dBm
• RX Sensitivity: -23 dBm
• Maximum distance: Up to 25 km (15.5 miles)*

Port 2

• 10Gbit/s Base Optical Multimode Transceiver SFP (OET 1940-MC)
• 850nm wavelength - multimode
• Duplex LC connector
• TX Optical Power: -6 to -1 dBm
• RX Sensitivity: -11 dBm
• Maximum distance: Up to 300 m (984.2 ft) over 50/125µ OM3 fiber*

LED Indicators

• 3 x LEDs: 1x Power LED, 2x Signal present LEDs

Power

• +12V DC @ 4.6W with SFPs (supports 7 - 15V DC input range)

Physical

• Dimensions: 120mm x 42mm x 22mm (4.73” x 1.65” x 0.86”) including connectors
• Weight: 125g (4.4oz)

Environmental

• Operating temperature: 5 - 40ºC (41 - 104ºF)
• Humidity: Up to 90% (non-condensing)

Ordering Information

• OET 1940-MC: 10Gbit/s Multimode to CWDM Fiber Transceiver
• OH-TR-10G-XXXX-LC: 10Gbit/s CWDM Optical Data Transceiver (wavelength-specific, to be selected separately)

*Note: Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable, specifically when it comes to fiber cables and accumulated optical losses in the fiber link. It is essential to determine link losses and perform optical budget calculations to ensure correct operation.
