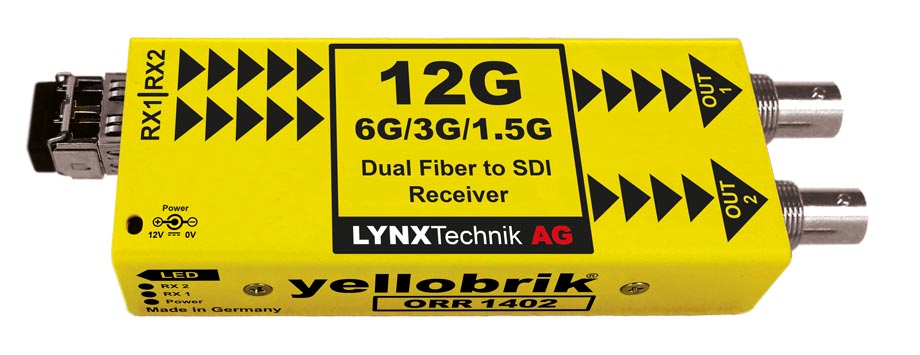

Lynx Technik yellobrik ORR 1402 Dual Channel 12G Fiber to SDI Receiver

The ORR 1402 is a dual-channel fiber optic to SDI receiver designed to handle high-resolution broadcast video signals over long distances. Each channel supports SDI video standards up to 12Gbit/s, making it ideal for 4K workflows. With two independent fiber inputs, each channel provides two reclocked SDI outputs, ensuring reliable and jitter-free transmission. The module supports 3G Level A and Level B formats and is compatible with all LYNX Technik yellobrik 12G fiber transmitters.

Key Features

• Dual independent 12G/6G/3G/HD/SD-SDI fiber inputs
• Each input has two reclocked SDI outputs
• Supports 4K/UHD video up to 60 fps (12G-SDI)
• Compatible with 3G Level A and Level B formats
• Input wavelength range: 1260nm - 1620nm
• Supports up to 10 km transmission distance over single-mode fiber
• Simplex LC/PC fiber connections
• Auto reclocking for 1.5G, 3G, 6G, and 12Gbit/s
• Error-free optical reception
• Hot-swappable, compact yellobrik design

Technical Specifications

Fiber Inputs

• 2 x independent simplex LC/PC single-mode fiber inputs
• Wavelength range: 1260nm to 1620nm
• Receiver sensitivity (typical): -10 dBm for 12Gbit/s
• Maximum distance: Up to 10 km (6.2 miles)

SDI Outputs

• 4 x SDI outputs (2 per channel) on 75 Ohm BNC connectors
• Video standards supported:
  • 12G-SDI (4096x2160p60, 3840x2160p60)
  • 6G-SDI, 3G-SDI (Level A & B), HD-SDI, and SD-SDI
• Multirate reclocking at 1.5G, 3G, 6G, and 12Gbit/s
• Compliant with SMPTE 2082, 2081, 424M, 292M, 259M

Power

• +12V DC input (supports 7-24V DC)
• Power consumption: Approx. 3.6W
• Power LED indicator

Physical Characteristics

• Dimensions: 140mm x 42mm x 22mm (5.51” x 1.65” x 0.86”)
• Weight: 125g (4.4oz)
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Humidity: Up to 90% (non-condensing)

Ordering Information

• ORR 1402: Dual-Channel 12G SDI Fiber to SDI Receiver (LC/PC)
• Compatible Transmitters: OTX 1410, OTX 1440, OTT 1412, OTT 1442
• RFR 1200: 19” 1RU yellobrik Rack Frame
• P-TAP 1000 / XLR 1000: Battery adapter cables
