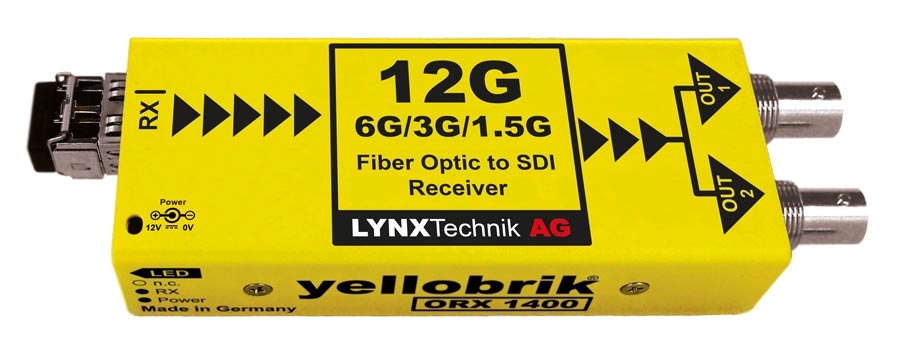

Lynx Technik yellobrik ORX 1400-ST 12G, 6G, 3G, HD Fiber Optic to SDI Receiver

The Yellobrik ORX 1400 is a compact fiber optic to SDI receiver designed to address the challenges associated with distributing uncompressed, high-bandwidth, broadcast-quality video signals over long distances. When paired with a fiber optic SDI transmitter, such as the Yellobrik OTX 1410, it provides a cost-effective optical transmission and reception system for signals up to 12Gbit/s (4096×2160 @ 60Hz), ensuring full uncompressed quality.

Key Features

• Supports 12G, 6G, 3G, and 1.5G SDI video standards
• Auto reclocking for 1.5Gbit, 3Gbit, 6Gbit, and 12Gbit signals
• Error-free optical transmission
• Provides two reclocked SDI outputs
• Available in LC/PC and ST connection variants
• Single-mode fiber connection
• Input wavelength range: 1260nm to 1620nm
• Hot-swappable and hot-pluggable design

Technical Specifications

Fiber Input

• Supports 1 x fiber optic SDI input
• LC/PC or ST connector options
• Single-mode fiber compatibility
• Input wavelength range: 1260nm to 1620nm

SDI Outputs

• 2 x reclocked SDI outputs on 75 Ohm BNC connectors
• Supports 12G, 6G, 3G, and 1.5G SDI video standards
• Automatic detection and reclocking of input signal

Power

• 12V DC power input
• Power consumption: approximately 2.0W

Physical

• Compact and robust design suitable for various professional broadcast applications
