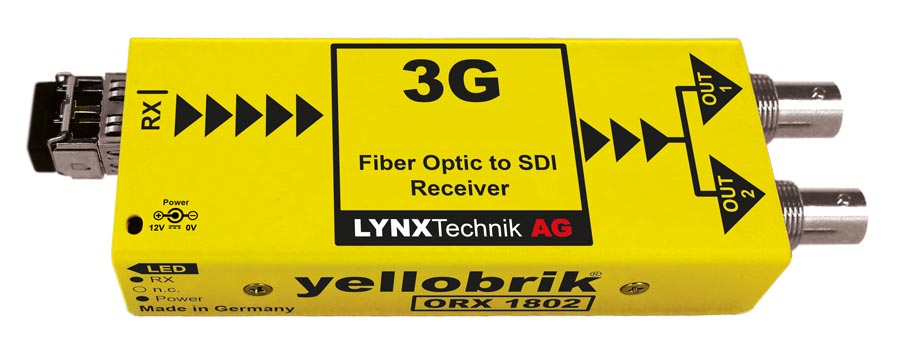

Lynx Technik yellobrik ORX 1802-2 LC 3G Fiber Optic to SDI Receiver

The Yellobrik ORX 1802-LC is a compact fiber optic to SDI receiver designed for long-distance transmission of uncompressed, broadcast-quality video signals over single-mode fiber. When paired with a fiber optic SDI transmitter, such as the Yellobrik OTX 1812-LC, it provides a cost-effective optical transmission and reception system for signals up to 3Gbit/s (1080p60), ensuring full uncompressed quality over single-mode fiber connections.

Key Features

• Supports SDI video inputs up to 3Gbit/s (1080p60)
• Compatible with 3Gbit Level A and Level B formats
• Single-mode fiber transmission for long-distance signal distribution
• Auto reclocking for 270Mbit/s, 1.5Gbit/s, and 3Gbit/s signals
• Provides two reclocked SDI outputs
• LC fiber optic connector for single-mode fiber
• Input wavelength range: 1260nm to 1620nm
• Supports hot swapping and hot plugging

Technical Specifications

Fiber Input

• 1 x fiber optic single-mode input
• LC connector
• Wavelength range: 1260nm to 1620nm
• Supports distances up to 10km (6.2 miles) over single-mode fiber

SDI Outputs

• 2 x SDI outputs on 75 Ohm BNC connectors
• Supports multi-rate operation from 270Mbit/s to 3Gbit/s
• Multirate reclocking: 270Mbit/s, 1.5Gbit/s, 3Gbit/s
• Electrical return loss: >15dB to 1.5GHz; >10dB to 3GHz

Power

• +12V DC power input (supports 7-24V DC input range)
• Power consumption: 1.9W nominal
• Power LED indicator on the module

Physical

• Dimensions (including connectors): 140mm x 42mm x 22mm (5.51” x 1.65” x 0.86”)
• Weight: 125g (4.4oz)

Environmental

• Operating temperature: 5°C to 40°C (41°F to 104°F)
• Humidity: 90% (non-condensing)
