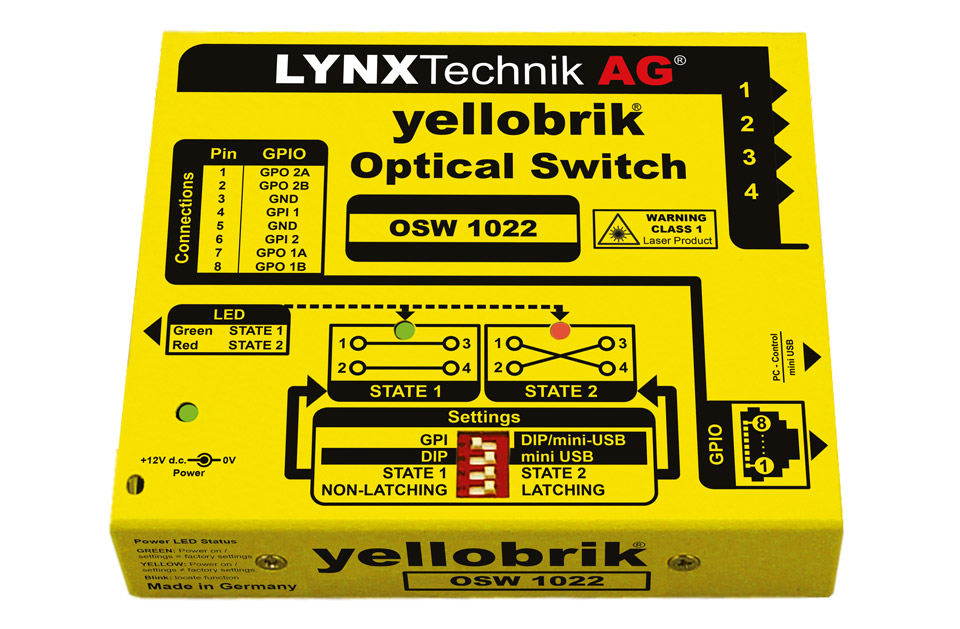

Lynx Technik yellobrik OSW 1022 2x2 Optical Switch

The OSW 1022 is an optical 2x2 switch that facilitates connection paths between two pairs of fiber optics. This compact switch is suitable for a wide range of applications, including fiber line emergency switchover, route diversity, optical networking system protection, and reconfiguration. It allows the selection of passive optical paths via General Purpose Interface (GPI) control, local dip switches, or PC/Mac through the yelloGUI software. The switch supports both latching and non-latching modes. In latching mode, the optical switch maintains the current optical connection path (state) and does not change on power failure. In non-latching mode, the optical switch switches to State 1 connection path upon power failure. When power is restored, the switch reverts to the connection path set by the dip switch or the GUI.

Key Features

• Compact 1-slot yellobrik module
• Two optical connection paths: State 1 and State 2
• Supports non-latching and latching modes
• 2 x GPI for path selections
• 2 x GPO for connection path monitoring
• 4 x dip switches for local control
• 2 x LEDs to display connection path status
• 1 x LED to display power status
• 1 x mini USB for PC control and configuration via yelloGUI
• Single-mode fiber connection with LC connector

Technical Specifications

Fiber Optic Interface

• Cable Type: Single-mode
• Connector: LC/PC
• Optical Wavelength: 1240 ~ 1640nm
• Insertion Loss: ≤1.0 dB (Typ 0.4 dB)
• Return Loss: ≥50 dB (Typ 55 dB)
• Switch Speed: ≤1 ms (Typ 0.5 ms)
• Repeatability: ≤0.002 dB

Control Interfaces

• USB: 1 x mini USB Type B
• GPI/O: RJ45 with 2 x GPI and 2 x GPO
  • Pin 1: GPO 2A
  • Pin 2: GPO 2B
  • Pin 3: GND
  • Pin 4: GPI 1
  • Pin 5: GND
  • Pin 6: GPI 2
  • Pin 7: GPO 1A
  • Pin 8: GPO 1B

Power Requirements

• Input Voltage: +12V DC
• Power Consumption: Approximately 1W nominal
• Supports 7 - 24V DC input range

Physical Characteristics

• Dimensions: 108 mm x 90 mm x 22 mm (4.25” x 3.54” x 0.86”) including connectors
• Weight: 125g (4.4oz)
• Operating Temperature: 5 - 40ºC (41 - 104ºF)
• Humidity: 90% (non-condensing)
