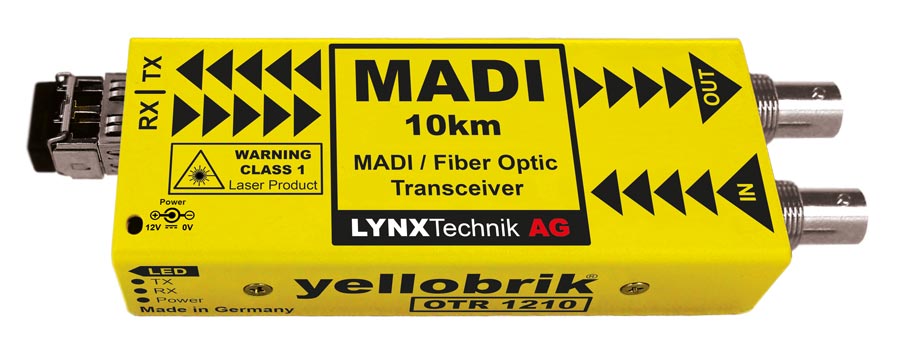

Lynx Technik yellobrik OTR 1210 MADI Coax to MADI Fiber Transceiver

The OTR 1210-LC is engineered to facilitate seamless conversion between MADI optical and coaxial signals, supporting up to 64 audio channels in both directions. Its real-time operation ensures zero latency and maintains the original signal quality, making it suitable for professional audio applications that require high fidelity over extended distances. The module is available in single-mode and multi-mode versions, catering to different transmission distance requirements. The single-mode variant enables MADI transmission over distances up to 10 km, whereas the multi-mode variant supports distances up to 550 meters. Both versions utilize duplex LC optical connections and are designed for easy integration into existing setups, supporting hot swapping and hot plugging for enhanced flexibility.

Key Features

• Bi-directional conversion between MADI optical and MADI coaxial formats
• Supports up to 64 audio channels in each direction
• Real-time conversion with zero latency and no signal degradation
• Available in single-mode and multi-mode versions to accommodate various transmission distances
• Single-mode version supports distances up to 10 km (6.2 miles)
• Multi-mode version supports distances up to 550 meters (1,804 feet)
• Utilizes duplex LC optical connections for reliable performance
• Supports hot swapping and hot plugging for seamless integration

Technical Specifications

Coaxial Input/Output

• 1 x 75 Ohm BNC connector for MADI coaxial input
• 1 x 75 Ohm BNC connector for MADI coaxial output
• Compliant with AES10-2008 standard
• Supports cable lengths up to 250 meters using Belden 1694A or equivalent

Fiber Optic Input/Output

• 1 x fiber optic input and 1 x fiber optic output
• Duplex LC/PC connections
• TX active and RX active LEDs indicate operational status

Single-Mode Version (OTR 1210)

• Transmitter wavelength: 1310 nm
• Optical power: -9 dBm to -3 dBm
• Receiver wavelength: 1260 nm to 1620 nm
• Sensitivity: -23 dBm (maximum)
• Maximum distance: Up to 10 km (6.2 miles)

Multi-Mode Version (OTR 1210 MM-850)

• Transmitter wavelength: 850 nm
• Optical power: -7 dBm to -2 dBm
• Receiver wavelength: 850 nm
• Sensitivity: -15 dBm (minimum)
• Maximum distance: Up to 550 meters (1,804 feet)

Power

• Operating voltage: +12V DC (supports 7 - 24V DC input range)
• Power consumption: Approximately 1.7W
• Power LED indicator on the module

Physical Specifications

• Dimensions (including connectors): 140 mm x 42 mm x 22 mm (5.51” x 1.65” x 0.86”)
• Weight: 125 grams (4.4 oz)

Environmental Conditions

• Operating temperature: 5°C to 40°C (41°F to 104°F)
• Humidity: Up to 90% (non-condensing)

Ordering Information

• OTR 1210: MADI Coax to MADI Fiber Transceiver - 10 km - 1310 nm – Single-mode Fiber LC connectors
• OTR 1210 MM-850: MADI Coax to MADI Fiber Transceiver - Multi-mode - Fiber LC connectors
• OTR 1210 MM-1310: MADI Coax to MADI Fiber Transceiver - Multi-mode - Fiber LC connectors
• OH-TR-0-850-MM: Fiber Optic Transceiver Option Multi-mode (LC)
• OH-TR-MADI-1310 MM: 1310 nm Multi-mode Optical Transceiver
• RFR 1200: High-power yellobrik 19” 1RU Rack Frame
• RFR 1001: yellobrik Mounting Bracket
• LC/ST Dup: LC Connector to ST Connector Adapter Kit
• LC/SC Dup: LC Connector to SC Connector Adapter Kit
• P-TAP 1000: P-TAP Battery Adapter Cable
• XLR 1000: 4-Pin XLR Camera Battery Adapter Cable
