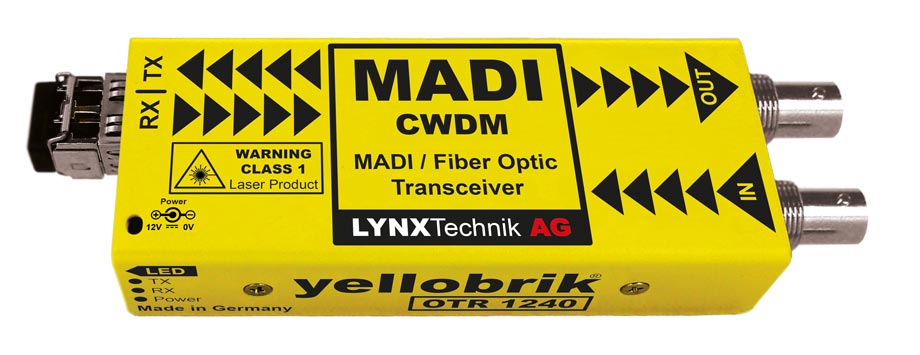

Lynx Technik yellobrik OTR 1240 MADI Coax to MADI Fiber Transceiver (CWDM)

The OTR 1240 is a versatile MADI fiber transceiver designed to convert up to 64 audio channels bi-directionally between MADI optical and MADI coaxial (electrical) formats. This real-time conversion ensures zero latency and maintains the integrity of the signal without any degradation. The compact design offers a cost-effective solution for extending MADI audio over long distances. When paired with another OTR 1240 at the receiving end (utilizing two fiber links), it forms a zero-latency MADI extender system capable of covering distances up to 40 km (24.8 miles). Additionally, the module provides 18 selectable CWDM wavelengths, facilitating integration into multiplexed CWDM environments. :contentReference[oaicite:4]{index=4}

Key Features

• Bi-directional conversion between MADI optical and MADI coaxial formats
• Supports up to 64 audio channels (IN and OUT)
• Real-time conversion with no signal degradation
• Extends MADI audio transmission up to 40 km (24.8 miles) over fiber
• Offers 18 CWDM wavelength selections (ITU-T G.694.2)
• Utilizes duplex LC single-mode optical connections
• Supports hot swapping and hot plugging

Technical Specifications

Coaxial Input/Output

• 1 x 75 Ohm BNC connector for input
• 1 x 75 Ohm BNC connector for output
• Compliant with AES10-2008 standard
• Cable length support: Up to 250m (Belden 1694A)

Fiber Optic Interface

• 1 x fiber optic input and 1 x fiber optic output
• Duplex LC single-mode optical connections
• 18 selectable CWDM wavelengths (ITU-T G.694.2)
• Transmission distance: Up to 40 km (24.8 miles) over single-mode fiber*

Power Requirements

• Input voltage: +12V DC
• Power consumption: Approximately 2.0W
• Supports 7 - 24V DC input range

Physical Characteristics

• Compact design suitable for standalone use or rack-mounted installation
• Compatible with LYNX Technik's RFR 1200 high-power 19” 1RU rack frame
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Humidity: 0% to 90% (non-condensing)

*Note: Distance is an approximation. Actual distances may vary depending on the type of fiber cable and accumulated optical losses in the fiber link. It is recommended to assess link losses and perform optical budget calculations to ensure proper operation.
