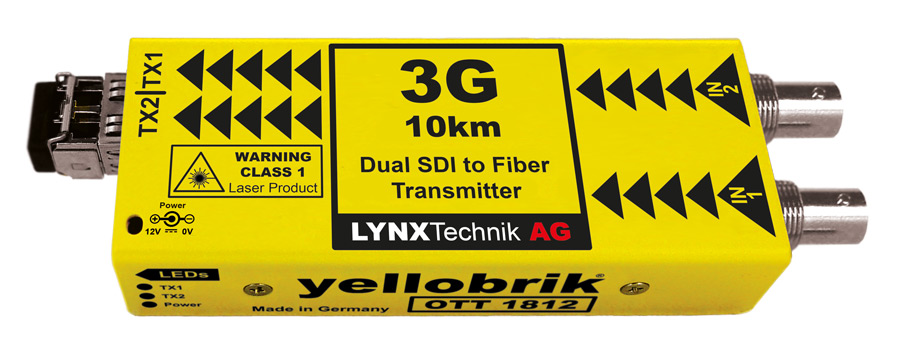

Lynx Technik yellobrik OTT 1812-1 Dual 3G SDI to Fiber Optic Transmitter

The OTT 1812-1 addresses the challenges associated with distributing uncompressed video signals over extended distances. By converting SDI signals to optical, it enables seamless transmission without compromising quality. Each of the two independent channels auto-detects and reclocks any 270Mbit/s, 1.5Gbit/s, or 3Gbit/s SDI source prior to optical transmission, ensuring signal integrity. The module is fully compatible with 3G Level A and Level B formats, making it versatile for various broadcast applications. When paired with the dual-channel fiber optic to SDI receiver (e.g., yellobrik ORR 1802-2), it offers a cost-effective solution for high-quality signal transmission. :contentReference[oaicite:4]{index=4}

Key Features

• Dual independent channels
• Supports SDI video inputs up to 3Gbit/s (1080p60)
• Compatible with 3G Level A and Level B formats
• Auto reclocking at 270Mbit/s, 1.5Gbit/s, and 3Gbit/s
• Error-free optical transmission
• Transmission distance up to 10 km (6.2 miles) at 3Gbit/s
• Duplex LC/PC single-mode optical connection
• Supports hot swapping and hot plugging

Technical Specifications

SDI Inputs

• 2 x SDI video on 75 Ohm BNC connectors (two independent channels)
• Standards: SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
• Multi-standard operation from 270Mbit/s to 3Gbit/s
• Multi-rate reclocking: 270Mbit/s, 1.5Gbit/s, 3Gbit/s
• Electrical Return Loss:
  • >15dB to 1.5GHz
  • >10dB to 3GHz
• Automatic cable equalization (Belden 1694A cable):
  • 250m at 270Mbit/s
  • 190m at 1.5Gbit/s
  • 140m at 3Gbit/s

Optical Outputs

• 2 x fiber optic outputs
• Simplex (single-mode) using LC/PC connections
• Standard: SMPTE 297M - 2006
• Wavelength: 1310nm
• Optical power: -5dBm to 0dBm
• TX active LED indicators on the side of the module
• Maximum distance: up to 10 km (6.2 miles) at 3Gbit/s

Power Requirements

• Input voltage: +12V DC (supports 7 - 24V DC input range)
• Power consumption: Approximately 2.0W nominal
• Power LED indicator on the side of the module

Physical Characteristics

• Dimensions (including connectors): 140mm x 42mm x 22mm (5.51” x 1.65” x 0.86”)
• Weight: 125g (4.4oz)
• Operating temperature: 5°C to 40°C (41°F to 104°F)
• Humidity: Up to 90% (non-condensing)

Ordering Information

• OTT 1812-1: Dual 3Gbit SDI to Fiber Optic Transmitter - 10 km
• ORR 1802-2: Dual 3G Fiber Optic to SDI Receiver
• OH-TT-1-Y-LC: Dual Fiber Optic Basic Transmitter Option 10 km
• LC/ST Dup: LC Connector to ST Connector Adapter Kit
• LC/SC Dup: LC Connector to SC Connector Adapter Kit
• P-TAP 1000: P-TAP Battery Adapter Cable
• XLR 1000: 4 Pin XLR Camera Battery Adapter Cable
• RFR 1001: yellobrik Mounting Bracket
• RFR 1200: High-power yellobrik 19” 1RU Rack Frame
