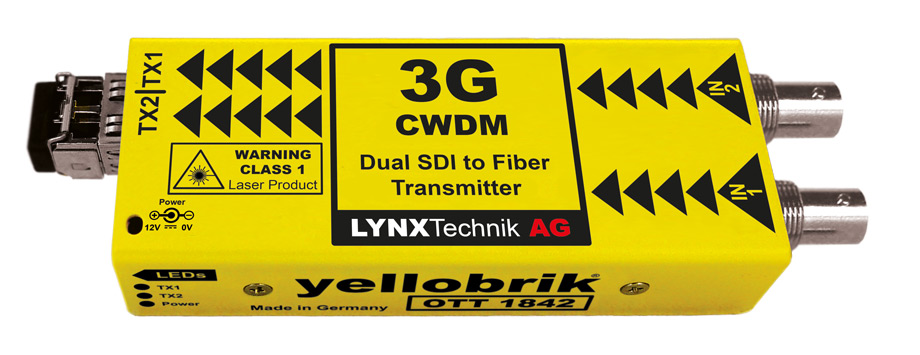

Lynx Technik yellobrik OTT 1842-1 Dual 3G SDI to Fiber Optic Transmitter - (CWDM)

The OTT 1842-1 addresses the challenges of distributing uncompressed broadcast-quality video signals over extended distances. By providing two independent channels, each capable of auto-detecting and re-clocking 270Mbit/s, 1.5Gbit/s, and 3Gbit/s SDI sources prior to optical transmission, it ensures signal integrity and compatibility with 3G Level A and Level B formats. When combined with the dual-channel fiber optic to SDI receiver module ORR 1802-2 and the OCM 1891/1892 CWDM multiplexers, it offers a cost-effective CWDM fiber system for up to 18 signals in a single fiber link.

Key Features

• Dual-channel transmission supporting SDI video inputs up to 3Gbit/s (1080p60).
• Compatible with 3G Level A and Level B formats.
• Auto reclocking at 270Mbit/s, 1.5Gbit/s, and 3Gbit/s.
• 18 selectable CWDM wavelengths (ITU-T G.694.2).
• Error-free optical transmission over distances up to 40 km (24.8 miles) at 3Gbit/s.
• Utilizes duplex LC/PC single-mode optical connections.
• Supports hot swapping and hot plugging for operational flexibility.

Technical Specifications

SDI Input

• 2 x SDI video inputs on 75 Ohm BNC connectors (two independent channels).
• Compliant with SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI standards.
• Multi-standard operation from 270Mbit/s to 3Gbit/s.
• Multi-rate reclocking at 270Mbit/s, 1.5Gbit/s, and 3Gbit/s.
• Electrical return loss: >15dB up to 1.5GHz; >10dB up to 3GHz.
• Automatic cable equalization (Belden 1694A cable):
  • Up to 250m at 270Mbit/s.
  • Up to 140m at 1.5Gbit/s.
  • Up to 80m at 3Gbit/s.

Fiber Optic Output

• 2 x fiber optic outputs.
• Simplex (single-mode) using LC/PC connections.
• Compliant with SMPTE 297M - 2006.
• Wavelength: CWDM selection (18 options available).
• Optical power: -4...+2dBm (depending on selected SFP option).
• Maximum distance: up to 40 km (24.8 miles) at 3Gbit/s (distance is an approximation; actual distances may vary based on fiber cable type and link losses).

Power Requirements

• Voltage: +12V DC (supports an input range of 7 - 24V DC).
• Power consumption: approximately 1.9W nominal.
• Power LED indicator on the side of the module.

Physical Characteristics

• Dimensions (including connectors): 140mm x 42mm x 22mm (5.51” x 1.65” x 0.86”).
• Weight: 125g (4.4 oz).
• Operating temperature: 5°C to 40°C (41°F to 104°F).
• Humidity: up to 90% (non-condensing).

Ordering Information

• OTT 1842-1: Dual 3Gbit SDI to Fiber Optic Transmitter (CWDM).
• OH-TT-4-XXXX-XXXX-LC: Dual Fiber Optic CWDM Transmitter Option 40km (XXXX-XXXX = Wavelength 1270/1290nm to 1590/1610nm).
• RFR 1200: High-power yellobrik 19” 1RU Rack Frame.
• RFR 1001: yellobrik Mounting Bracket.
• LC/ST Dup: LC Connector to ST Connector Adapter Kit.
• LC/SC Dup: LC Connector to SC Connector Adapter Kit.
• P-TAP 1000: P-TAP Battery Adapter Cable.
• XLR 1000: 4-Pin XLR Camera Battery Adapter Cable.
