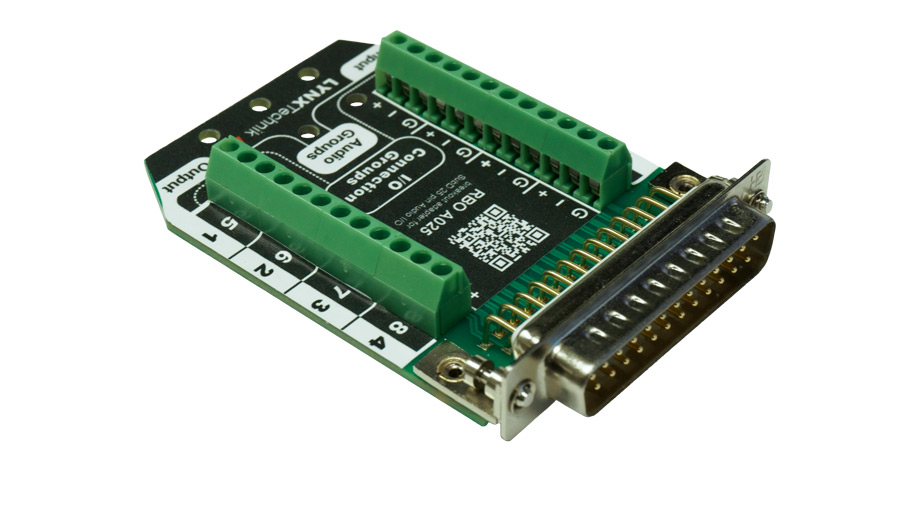

Lynx Technik yellobrik RBO 1025 D-sub 25 Audio Adapter PCB

The RBO A025 is a versatile breakout audio board designed to facilitate connections between various LYNX Technik products equipped with SubD 25 connectors and custom audio wiring setups. Serving as the successor to the RBO 1025 and RBO 5025 modules, it offers a flexible solution for interfacing balanced analog and digital audio signals.

Key Features

• Compatible with LYNX Technik products utilizing SubD 25 connectors
• Provides screw terminal connections for up to 8 audio channels
• Supports both balanced analog and AES digital audio signals
• Includes legacy pinout connections for backward compatibility
• Compact design measuring 80mm x 55mm x 14mm (L x W x H)
• Lightweight at 81 grams
• Passive operation requiring no external power

Technical Specifications

Connections

• SubD 25-pin male connector for interfacing with LYNX Technik devices
• Screw terminals for individual audio channel connections

Dimensions and Weight

• Length: 80mm (3.15 inches)
• Width: 55mm (2.17 inches)
• Height: 14mm (0.55 inches), including connectors
• Weight: 81 grams (2.86 ounces)

Compatibility

• Designed for use with various LYNX Technik products featuring SubD 25 connectors, including the PDM 1484 D AES/Analog Audio Embedder/De-embedder and greenMachine titan hardware.

Additional Information

• Offers flexible options to connect custom audio wiring, with specific pinout configurations depending on the product.
• Supports both I/O connection groups and predefined audio inputs/outputs in recent LYNX Technik products.
• Provides cable strain relief features to ensure secure and reliable connections.
