Lynx Technik yellobrik RCT 1012 Rack Controller

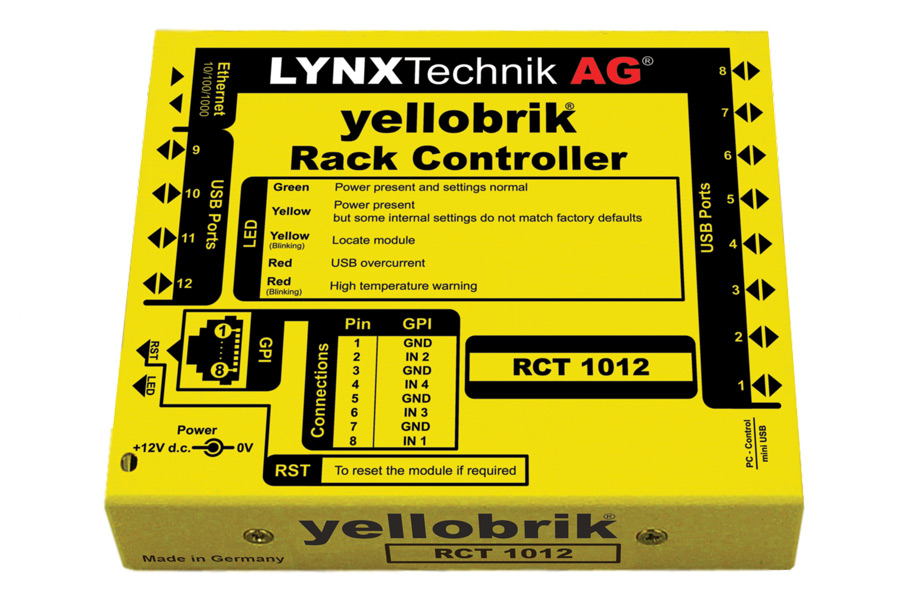

The RCT 1012 is a compact, single-slot yellobrik module designed to streamline the management and control of up to 12 yellobrik modules through an Ethernet interface. This centralized solution eliminates the need for individual connections to each module, allowing for efficient parameter adjustments and firmware updates. The RCT 1012 automatically detects connected yellobrik modules, displaying them within the network for remote access and configuration.

Key Features

• Compact one-slot yellobrik module
• Manages up to 12 yellobrik modules via 12 USB Type A ports
• Provides 4 GPI connections for monitoring power supply status of the RFR 1000-1 rack frame
• Features 1 x Ethernet 10/100/1000 port for network connectivity
• Includes a reset button for restoring default settings
• Equipped with a mini USB port for maintenance purposes
• LED indicators for power status, USB overcurrent alerts, and high-temperature warnings
• Compatible with Lynx Centraal software for comprehensive module management

Technical Specifications

Connectivity

• 12 x USB Type A ports for yellobrik module connections
• 1 x RJ-45 Ethernet port supporting 10/100/1000 Mbps
• 1 x mini USB Type B port for maintenance
• 1 x RJ-45 GPI connector with 4 external GPI inputs for monitoring RFR 1000-1 power supplies

Power Requirements

• Input Voltage: +12V DC nominal (supports 7 - 24V DC input range)
• Power Consumption: Approximately 4W

Physical Characteristics

• Dimensions (including connectors): 108mm x 90mm x 22mm (4.25” x 3.54” x 0.86”)
• Weight: 125g (4.4oz)
• Operating Temperature: 5°C to 40°C (41°F to 104°F)
• Humidity: Up to 90% (non-condensing)

Compatible yellobrik Modules

• CDH 1813
• CHD 1802-1
• CHD 1812-1
• CDH 1411
• SPG 1708
• SRV 1000
• CQS 1441
• OSW 1022
• ORX 1702-1
• OTX 1712-2
• PDM 1284 B
• PDM 1284 D
• PDM 1383
• PMV 1841
• PVD 1800
• PDM 1484-B
• PDM 1484-D
