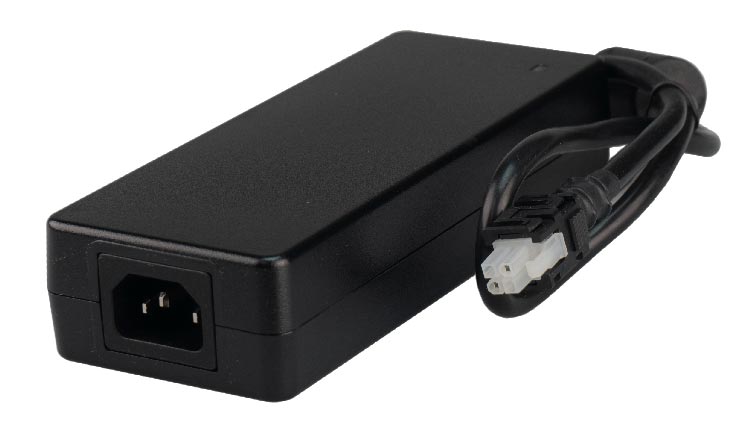

Lynx Technik yellobrik RPS A100 AC to DC Desktop Power Supply Module 12V/8A

The RPS A100 is an external inline "brick" power supply specifically designed for use with the RFR 1000-1 rack frame, accommodating up to 14 yellobrik modules. It features a 4-pin Molex Mini-Fit DC connector and includes an IEC power cord with a USA AC plug. For enhanced reliability, two RPS A100 units can be used simultaneously to provide redundant power protection. This power supply is equipped with an IEC320-C14 AC inlet, supporting a wide operating voltage range of 100 to 240 VAC at 50 to 60 Hz, making it versatile for various power environments. :contentReference[oaicite:4]{index=4}

Key Features

• Provides centralized 12V DC power for the RFR 1000-1 rack frame, supporting up to 14 yellobrik modules
• Delivers 100W of continuous output power
• Features active Power Factor Correction (PFC) function
• Complies with energy efficiency level VI or CoC Tier II standards
• Includes an LED indicator for power status
• Equipped with a 4-pin Molex Mini-Fit DC connector
• Comes with an IEC power cord; plug type varies by region (EU, US, UK)

Technical Specifications

• Input Voltage: 100 to 240 VAC, 50 to 60 Hz
• Output Voltage: 12V DC
• Maximum Output Power: 100W (8.3A)
• Connector Type: 4-pin Molex Mini-Fit DC connector
• Dimensions: 5.4 x 2.3 x 1.3 inches (137 x 59 x 34 mm)
• Weight: Approximately 1 lb (450 g)

Ordering Information

• RPS A100 N: 12V Power Supply without Power Cord
• RPS A100 EU: 12V Power Supply with EU Power Cord
• RPS A100 US: 12V Power Supply with US Power Cord
• RPS A100 UK: 12V Power Supply with UK Power Cord
