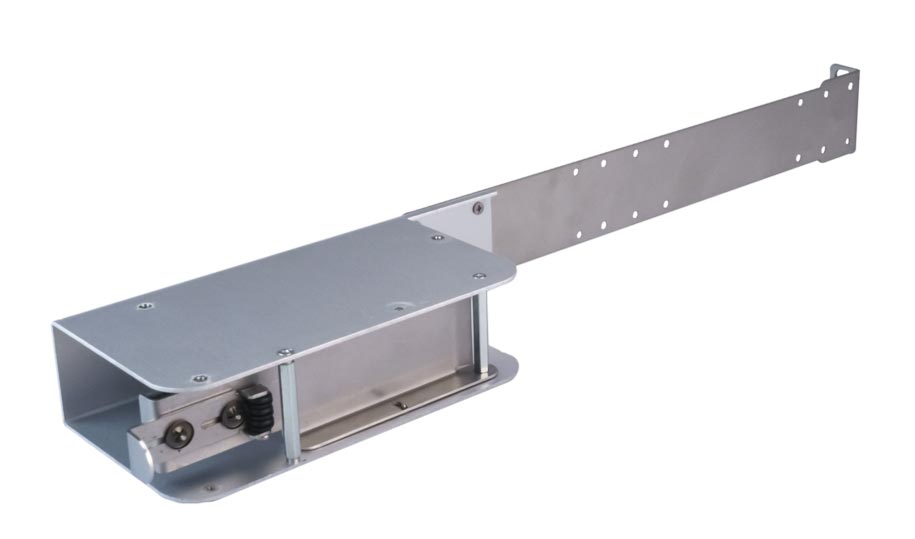

Lynx Technik yellobrik RXT 1001 Power Supply Holder for RFR 1000-1

The RXT 1001 addresses the common challenge of managing external power supplies in professional installations. By securing the power supply directly to the RFR 1000-1 rack frame, it simplifies cable management and maintains a clean setup. The holder replaces the existing rack ears on the RFR 1000-1, positioning the power supply at the rear while retaining the 1 RU footprint. This design allows for the use of one or two RXT 1001 brackets per RFR 1000-1 frame, accommodating systems with redundant power configurations.

Key Features

• Compact design tailored for the RFR 1000-1 rack frame.
• Accommodates one RPS A100 (RPS 1120/RPS 6120) external power supply.
• Innovative locking system that firmly secures the power supply without the need for tools, preventing movement during transportation or installation.
• Easy installation process, enhancing operational efficiency.
• Allows for securing both main and redundant power supplies when two holders are used.

Technical Specifications

• Dimensions: 447 mm x 103.35 mm x 44 mm (17.6 in x 4.07 in x 1.73 in).
• Weight: 380 g (13.4 oz).
• Compatibility: Designed for the RFR 1000-1 rack frame and RPS A100 (RPS 1120/RPS 6120) external power supplies.

Ordering Information

• RXT 1001: Power Supply Holder for RFR 1000-1.
• RFR 1200: High-power yellobrik 19” 1RU Rack Frame.
• RFR 1001: yellobrik Mounting Bracket.
• RFR 1018: yellobrik 0.5RU Rack Frame for passive fiber modules.
• RPS A100: AC to DC Desktop Power Supply Module 12V/8A.
