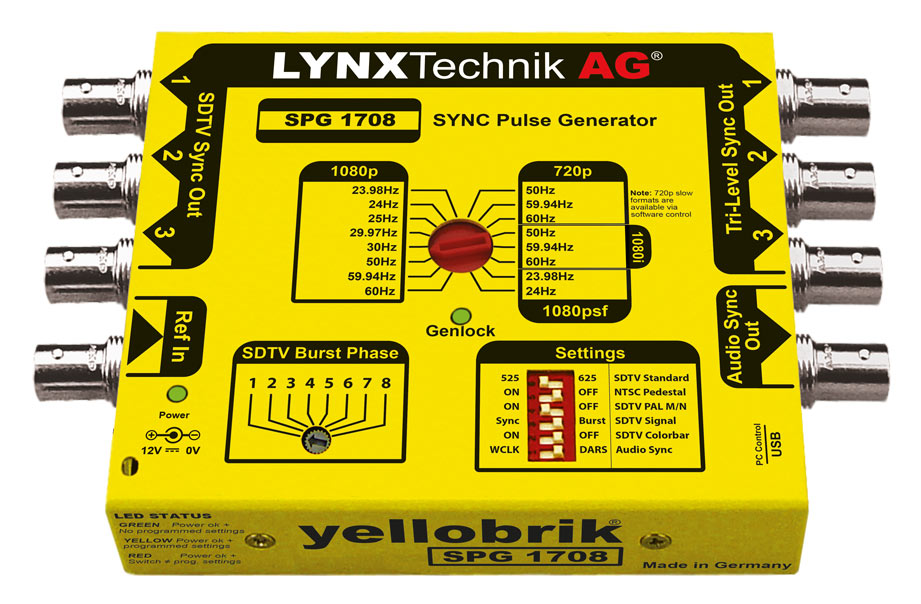

Lynx Technik yellobrik SPG 1708 Tri-/Bi-Level Sync Pulse Generator with Genlock

The SPG 1708 is a compact, versatile analog sync pulse generator with genlock, designed to provide Tri-Level (HD) and Bi-Level (SD) video sync signals, as well as audio sync outputs. This module is ideal for broadcast and professional video applications requiring precise synchronization. It offers three Tri-Level sync outputs, three Bi-Level sync outputs, and a separate audio sync output that can be configured for 48kHz Word Clock or Digital Audio Reference Signal (DARS). The sync generator boasts an accuracy of 2ppm and is robust and temperature stabilized. Its flexible genlock capability allows synchronization to any SD, HD, or 3G reference input, with full cross-lock functionality and timing lock, even across unmatched standards. Bi-Level and Tri-Level sync outputs and audio sync signals are all frequency locked to the reference, regardless of the selected sync standard for the outputs. Output signals are timing locked if they are in the same frame rate group as the reference. Additionally, a delay in units of output line and pixel can be applied when remotely controlling the SPG 1708 via yelloGUI. :contentReference[oaicite:5]{index=5}

Key Features

• Supports all regular analog Tri-Level and Bi-Level sync standards
• Simultaneous HD/Tri-Level and SD/Bi-Level sync outputs
• 3 x HD/Tri-Level and 3 x SD/Bi-Level sync outputs
• Genlock with cross-lock to any sync standard
• Selectable "Color Bars," "Black Burst," or "Sync Only" for SD
• NTSC, PAL, or PAL M/N for Bi-Level sync outputs
• Burst phase adjustment for NTSC and PAL sync
• Audio sync output: 48kHz Word Clock or DARS
• Compatible with yelloGUI for accessing additional internal settings

Technical Specifications

HD Sync Outputs

• 3 x Tri-Level sync outputs
• Supported formats:
  • 1080i at 50Hz, 59.94Hz, 60Hz
  • 1080p at 23.98Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz
  • 720p at 23.98Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz
  • 1080psf at 23.98Hz, 24Hz
• Standards: SMPTE 274M, SMPTE 296M
• Selectable via integrated 16-position rotary switch
• Return loss: >40dB up to 5MHz
• Signal-to-noise ratio: >75dB

SD Sync Outputs

• 3 x Bi-Level sync outputs
• Supported formats: NTSC, PAL, PAL M/N
• Standards: SMPTE 170M, ITU-R BT 470.6
• Selectable output: Color Bars, Black Burst, or Sync Only
• NTSC 7.5 IRE pedestal ON/OFF (adjustable burst phase)
• Return loss: >40dB up to 5MHz
• Signal-to-noise ratio: >75dB

Reference Input

• Type: Bi-Level or Tri-Level analog sync
• Standards: SMPTE 274M, SMPTE 296M
• Cross-lock compatible with 525 and 625 SD sync and all HD sync standards

Audio Sync Output

• Selectable between:
  • 48kHz Word Clock: 0 - 5.0V
  • DARS: SMPTE 276M unbalanced AES (24-bits) - Grade 2

Power Requirements

• Input voltage: +12V DC
• Power consumption: Approximately 2.4W nominal
• Supports 7 - 17V DC input range

Physical Characteristics

• Dimensions: 140 mm x 90 mm x 22 mm (5.51” x 3.54” x 0.86”) including connectors
• Weight: 300 g (10.6 oz)
• Operating temperature: 5°C to 40°C (41°F to 104°F)
• Humidity: Up to 90% (non-condensing)
