AJA C10DA Analog Video 1x6 Distribution Amplifier

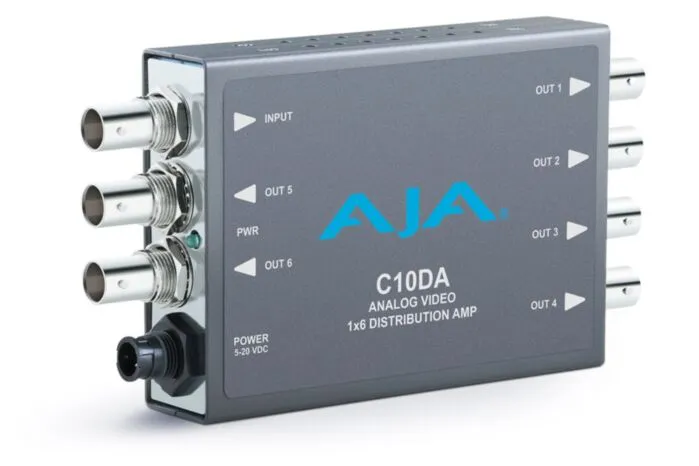

AJA C10DA - Analog Video 1x6 Distribution Amplifier Overview The AJA C10DA is a compact 1x6 analog distribution amplifier designed to support NTSC and PAL video signals. It allows for the distribution of multiple copies of an incoming signal or the extension of composite video content, with gain adjustment to compensate for long cable runs. Additionally, the C10DA can distribute tri-level sync in HD facilities when an external sync signal is fed into the video input. :contentReference[oaicite:0]{index=0} Key Features

• 1x6 Analog Distribution: Distributes one analog video input to six outputs, supporting NTSC and PAL formats. :contentReference[oaicite:1]{index=1}
• Gain Adjustment: Offers gain control to compensate for signal loss over extended cable runs, ensuring optimal signal integrity. :contentReference[oaicite:2]{index=2}
• Tri-Level Sync Distribution: Capable of distributing tri-level sync signals in HD facilities when an external sync signal is provided. :contentReference[oaicite:3]{index=3}
• Compact and Portable Design: Small form factor allows for easy installation behind monitors, in equipment racks, or directly on camera rigs. :contentReference[oaicite:4]{index=4}
• Universal Power Supply: Includes a universal power adapter with international plug connections, accommodating global power standards. :contentReference[oaicite:5]{index=5}
• Durable Construction: Built to withstand the demands of professional video environments, ensuring reliable performance. :contentReference[oaicite:6]{index=6}
• Five-Year Warranty: Backed by AJA's industry-leading five-year warranty, ensuring long-term reliability and support. :contentReference[oaicite:7]{index=7}

Technical Specifications

• Video Input:
  • 1x BNC analog video input
• Video Outputs:
  • 6x BNC analog video outputs
• Supported Formats:
  • NTSC
  • PAL
  • Bi-level and tri-level reference signals
• Control:
  • DIP switch for input/output settings, signal termination, and gain adjustment
• Power:
  • 5VDC regulated, 2 watts; universal power supply included
• Dimensions (W x D x H):
  • Approximately 5.8" x 3.1" x 1.0" (147 mm x 79 mm x 25 mm)
• Weight:
  • Approximately 0.6 lbs (0.27 kg)
• Operating Environment:
  • Operating Temperature: 0 to 40°C (32 to 104°F)
  • Storage Temperature: -40 to 60°C (-40 to 140°F)
  • Operating Relative Humidity: 10-90% non-condensing
