AJA Dual 12G-SDI/DANTE 64-Channel Embedder/Disembedder, DashBoard Support

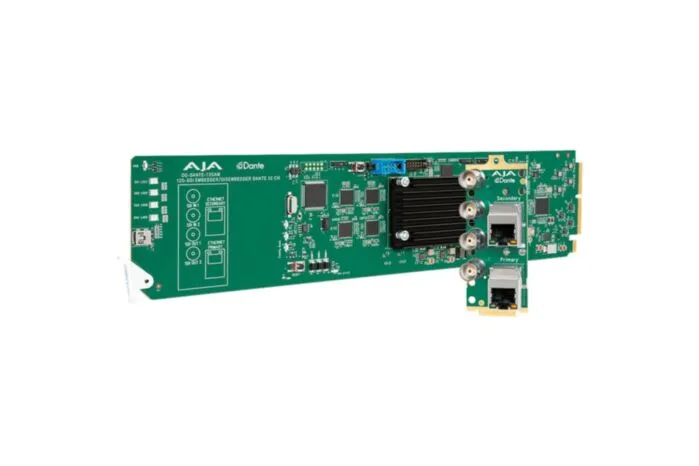

The AJA OG-DANTE-12GAM is an openGear-compatible card designed to bridge 12G-SDI sources and destinations with embedded audio to and from the Dante audio ecosystem. This high-density solution enables seamless integration of professional video and audio workflows, supporting uncompressed, multi-channel, low-latency, high-resolution audio over standard IP networks.

Key Features:

• 12G-SDI to Dante Audio Bridging: Converts 12G/6G/3G-SDI embedded audio to and from the Dante audio network, facilitating integration between SDI and IP-based audio systems.
• Dual Independent 12G-SDI Ports: Equipped with two 12G-SDI input and two 12G-SDI output ports, each supporting up to 16 channels of embedded audio, totaling 64 channels per card.
• Dante Network Redundancy: Features primary and secondary Gigabit Ethernet ports to ensure reliable and uninterrupted audio networking.
• High-Density Design: Supports up to 10 cards in a single openGear frame, enabling up to 640 channels of SDI/Dante audio bridging in a compact, rack-mountable form factor.
• Remote Control and Monitoring: Compatible with Ross DashBoard software for remote configuration and status monitoring, as well as Dante Controller software for audio routing and management.
• Hot-Swap Capability: Allows for easy installation and replacement without interrupting the operation of other cards in the frame.
• Five-Year Warranty: Backed by AJA's industry-leading five-year warranty, ensuring long-term reliability and support.

Specifications:

• Video Formats Supported: 4K/UltraHD, 2K, HD, and SD resolutions.
• Audio Channels: Up to 32 channels of audio embedding and 32 channels of disembedding simultaneously.
• Network Interface: 1x primary and 1x secondary Gigabit Ethernet ports for Dante audio networking.
• Control Interface: Remote configuration through DashBoard Control System and Dante Controller software.
• Power Consumption: 4.5 watts.
• Form Factor: openGear standard form factor; requires 2 slots; rear card included.

Package Includes:

• OG-DANTE-12GAM openGear card
• Rear I/O module
• Quick start guide

Important Notes:

• Ensure proper SDI and network cabling for optimal performance.
• Refer to the product manual for detailed installation and operational guidelines.
• Compatible with OG-X-FR and OG-3-FR openGear frames; DFR-8321 frame is not supported.
