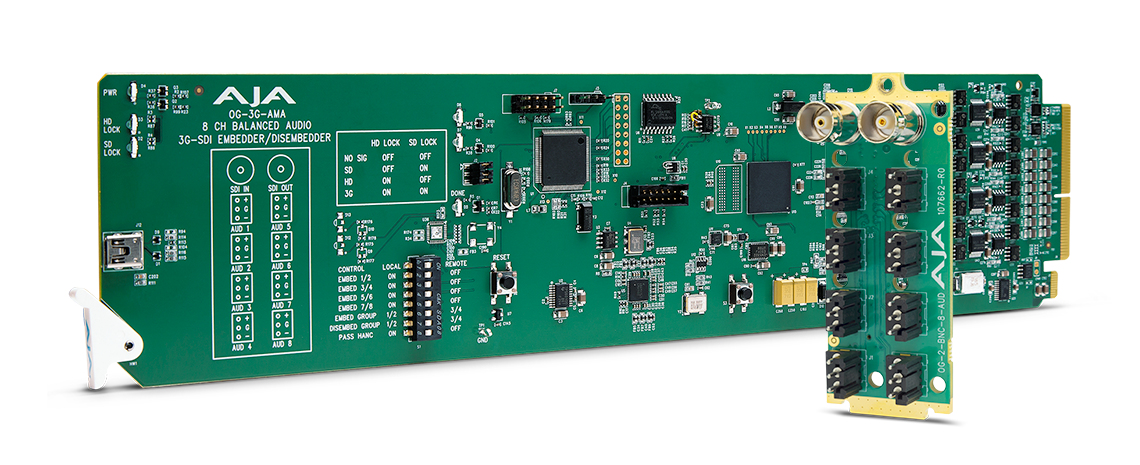

AJA OG-3G-AMA modular signal processing module

The AJA OG-3G-AMA is an openGear-compatible 8-channel analog audio embedder/disembedder designed for seamless integration into professional video workflows. Supporting 3G-SDI input and output up to 1080p 60, it automatically detects and configures to the input video standard, providing a versatile solution for embedding and disembedding balanced analog audio in SDI infrastructures.

Key Features:

• 3G-SDI Audio Embedding/Disembedding: Supports 8 channels of balanced analog audio I/O, allowing for flexible embedding and disembedding of audio within 3G-SDI signals.
• Automatic Input Detection: Automatically detects and configures to the input video standard, simplifying setup and ensuring compatibility with various video formats.
• Flexible Audio Configuration: Utilizes 3-pin terminal block connectors that can be set to perform audio input or output functionality, accommodating diverse audio routing requirements.
• DashBoard Support: Compatible with DashBoard network control software on Windows®, macOS®, and Linux®, enabling remote control and monitoring of the openGear architecture for convenient configuration and management.
• openGear Compatibility: Designed for use in high-density openGear 2RU frames, including AJA’s OG-X-FR frame, ensuring seamless integration into existing infrastructures.
• Five-Year Warranty: Backed by AJA's industry-leading five-year warranty, providing long-term reliability and support.

Specifications:

• Video Formats Supported: 2048x1080p, 2048x1080PsF, 1920x1080p, 1920x1080PsF, 1920x1080i, 1280x720p, 720x576i, 720x480i; RGB and YCbCr, 4:4:4/4:2:2, 10-bit.
• Video Input: 1x 3G-SDI BNC, SMPTE-259/292/424; supports single link SD/HD/2K and single link 3G-SDI Level A and Level B (Dual Link or Dual Stream), SMPTE 425.
• Video Output: 1x 3G-SDI BNC, SMPTE-259/292/424; provides a delayed, reclocked version of the video input at the same frame rate.
• Audio Connectors: 8x 3-pin terminal block connectors, each carrying one channel of analog audio configurable as input or output.
• Audio Conversion: 24-bit digital audio converters; supports SMPTE 272M (SD) and SMPTE 299M (3G/HD) standards.
• Control Interface: Remote configuration through DashBoard Control System; also features external DIP switches for local control.
• Power Consumption: 4.5 watts.
• Form Factor: openGear standard form factor; compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames.

Package Includes:

• OG-3G-AMA openGear card
• Rear I/O module
• Quick start guide

Important Notes:

• Ensure proper SDI and analog audio cabling for optimal performance.
• Refer to the product manual for detailed installation and operational guidelines.
• Compatible with DashBoard Control System for remote configuration and monitoring.
