AJA OG-FIDO-2R 2-Channel Single Mode LC Fiber to 3G-SDI Receiver, DashBoard Support
SKU
OG-FIDO-2R
£690.12
£575.10
Available to order

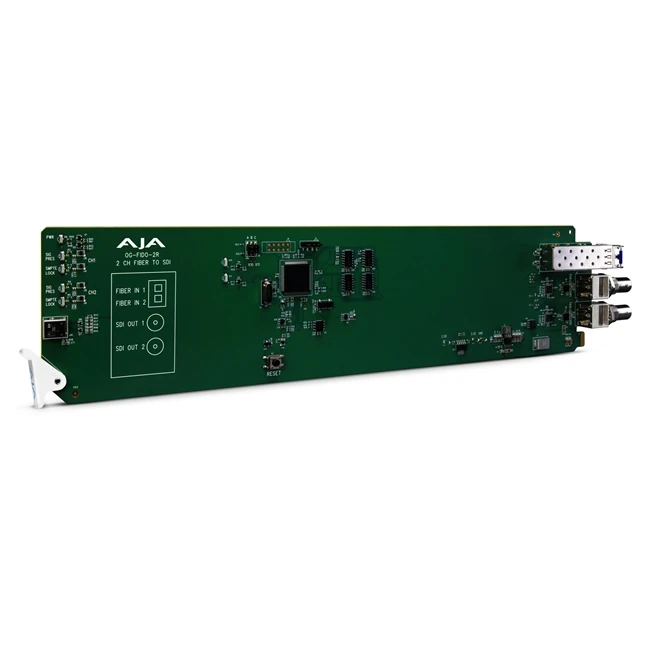

The AJA OG-FiDO-2R is an openGear-compatible, 2-channel fiber-to-3G-SDI converter that extends 3G-SDI signals up to 10 km over single-mode fiber. Each channel operates independently, supporting different 3G-SDI rates, and integrates seamlessly into openGear 2RU frames with DashBoard software support for remote control and monitoring.
| SKU | OG-FIDO-2R |
|---|---|
| Manufacturer | AJA |
| Availability | Y |
AJA OG-FiDO-2R - openGear 2-Channel Single Mode LC Fiber to 3G-SDI Receiver Overview The AJA OG-FiDO-2R is an openGear-compatible, 2-channel fiber-to-3G-SDI converter designed to extend 3G-SDI signals up to 10 km (32,808 ft) over standard single-mode fiber optic cable. Each fiber input operates independently, allowing different 3G-SDI rates on each channel. Key Features
- Dual Independent Channels: Two independent fiber inputs enable separate 3G-SDI signal conversions per channel.
- Long-Distance Signal Extension: Transmits 3G-SDI signals up to 10 km (32,808 ft) over single-mode fiber, ideal for remote production and broadcast applications.
- openGear Compatibility: Fits in openGear 2RU frames, including AJA's OG-X-FR frame, for high-density installations.
- DashBoard Support: Compatible with DashBoard software on Windows®, macOS®, and Linux® for remote control and monitoring.
- Automatic Detection and Reclocking: Supports automatic detection and reclocking for 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, and 2.970 Gbps signals.
- Video Formats: 150 Mbps to 3 Gbps, format agnostic.
- Video Inputs:
- 2x independent single-mode LC fiber inputs, SMPTE-297 compliant.
- Nominal Wavelength: 1260 nm to 1620 nm.
- Optical Sensitivity: -18 dBm (maximum).
- Video Outputs:
- 2x independent 3G-SDI BNC outputs, SMPTE-259/292/424 compliant.
- Reclocking: Automatic for 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, and 2.970 Gbps signals; all other rates are passed through without reclocking.
- Power Consumption: 2.5 watts.
- Operating Temperature: 0 to 40°C (32 to 104°F).
- Storage Temperature: -40 to 60°C (-40 to 140°F).
