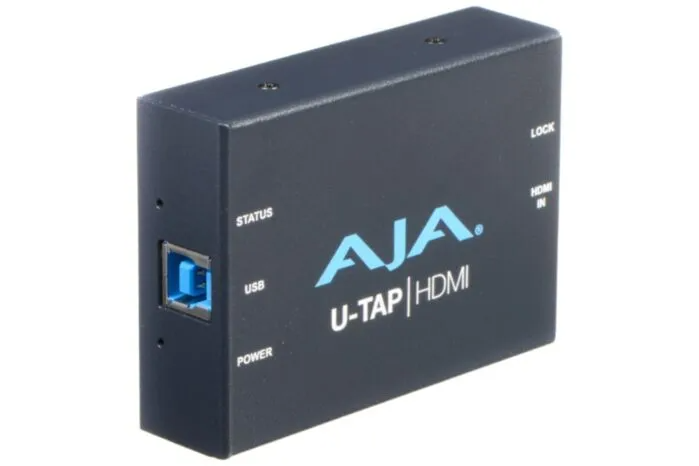

AJA U-TAP HDMI USB 3.0 Capture Device – Plug & Play

SKU
U-TAP-HDMI-R0
£414.10 £345.08
In stock
Only 5 left
The AJA U-TAP HDMI is a portable USB 3.0 capture device that enables high-quality video and audio capture from HDMI sources without the need for drivers. Supporting resolutions up to 1080p60, it is compatible with macOS®, Windows®, and Linux® systems, making it ideal for streaming, video conferencing, and other professional applications.
More Information
SKU U-TAP-HDMI-R0
Manufacturer AJA
Availability Y
AJA U-TAP HDMI - USB 3.0 Powered HDMI Capture Device Overview The AJA U-TAP HDMI is a compact and portable USB 3.0 capture device that enables high-quality video and audio capture from HDMI sources. It offers a simple, driver-free setup, making it an ideal solution for streaming, video conferencing, and other applications requiring HDMI capture on macOS®, Windows®, and Linux® systems. Key Features
  • Plug-and-Play Operation: No drivers required; U-TAP HDMI is supported directly in macOS®, Windows®, and Linux®, ensuring a hassle-free setup.
  • High-Quality Video Capture: Supports video formats up to 1080p at 60 frames per second, delivering smooth and detailed video for various applications.
  • Bus-Powered via USB 3.0: Draws power directly from the USB 3.0 connection, eliminating the need for an external power supply and enhancing portability.
  • Broad Software Compatibility: Compatible with a wide range of professional software applications, including OBS, Skype, Zoom, and more, providing flexibility across different workflows.
  • Compact and Durable Design: Small enough to carry anywhere, with a rugged construction suitable for use in the field, on set, or in the studio.
Technical Specifications
  • Video Input:
    • 1x HDMI v1.4a input, supporting 24, 30, or 36-bits/pixel, RGB or YUV.
  • Audio Input:
    • 2-channel embedded HDMI audio.
  • Supported Video Formats:
    • HD: 1920x1080p (23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps)
    • HD: 1920x1080i (25, 29.97, 30 fps)
    • HD: 1280x720p (50, 59.94, 60 fps)
    • SD: 625i (25 fps), 525i (29.97 fps)
    • Computer: Various resolutions up to 1920x1200p (60 fps)
  • Host Interface: USB 3.0 (also compatible with USB 2.0 at reduced performance).
  • Power: 5V via USB bus power; 6.5W maximum.
  • Operating Temperature: 0 to 40°C (32 to 104°F).
  • Dimensions (W x D x H): 3.3" x 2.4" x 1.0" (84mm x 61mm x 25mm).
  • Weight: Approximately 0.3 lbs (0.2 kg).
