iiyama 15’’ 10pt touch Open Frame monitor with Touch Through-Glass function
SKU
TF1534MC-B7X
£366.34
£305.28
In stock
Approx. 12 available.
15’’ 10pt touch Open Frame monitor with Touch Through-Glass function
Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
Scratch resistance
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
IP65
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.

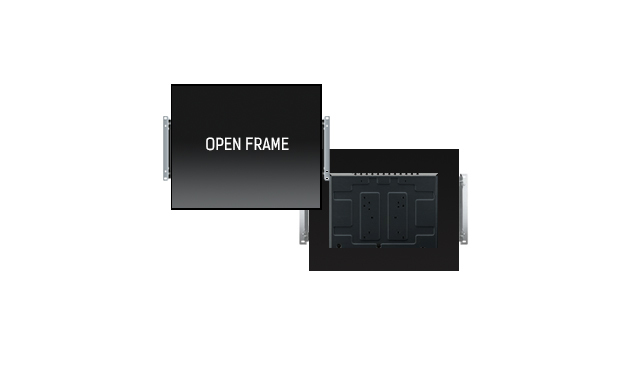

Open frame brackets
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.
The ProLite TF1534MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 370 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.2 million colours |
| Native aspect ratio | 4:3 |
| HD type | XGA |
| Display technology | LED |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.297 x 0.297 mm |
| Horizontal scan range | 31.4 - 60 kHz |
| Viewable size, horizontal | 30.4 cm |
| Viewable size, vertical | 22.8 cm |
| Display resolution | 1024 x 768 pixels |
| Response time | 8 ms |
| Display diagonal | 38.1 cm (15") |
| Contrast ratio (typical) | 700:1 |
| Surface hardness | 7H |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | TN |
| Display diagonal (metric) | 38 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 370 cd/m² |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
| Performance | |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| USB Touch port | Yes |
| Technical details | |
| Height (without stand) | 265.5 mm |
| Depth (without stand) | 44.5 mm |
| Width (without stand) | 337.5 mm |
| HDMI | Yes |
| Display viewable area (HxV) | 304 x 228 mm |
| Product colour | Black |
| Products per pallet | 78 pc(s) |
| Front bezel colour | Black |
| Pallet net width | 91 cm |
| Pallet net height | 114 cm |
| Pallet net length | 198.7 cm |
| Power supply type | External |
| Weight (with stand) | 2.7 kg |
| Surface hardness | 7H |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |
|---|---|
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
| Power | |
| Power supply type | External |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 9 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| AC adapter output voltage | 12 V |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| Weight & dimensions | |
| Height (without stand) | 265.5 mm |
| Depth (without stand) | 44.5 mm |
| Width (without stand) | 337.5 mm |
| Width (with stand) | 337.5 mm |
| Depth (with stand) | 44.5 mm |
| Height (with stand) | 265.5 mm |
| Weight (with stand) | 2.7 kg |
| Weight (without stand) | 2.7 kg |
| Package width | 435 mm |
| Package depth | 435 mm |
| Package height | 335 mm |
| Package weight | 4 kg |
| Packaging data | |
| Package width | 435 mm |
| Package depth | 435 mm |
| Package height | 335 mm |
| Package weight | 4 kg |
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, HDMI, USB |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, HDMI, USB |
| Other features | |
| Display viewable area (HxV) | 304 x 228 mm |
| International Protection (IP) code | IP65 |
| Height (without stand) | 265.5 mm |
| Depth (without stand) | 44.5 mm |
| Width (without stand) | 337.5 mm |
| Quick start guide | Yes |
| HDMI | Yes |
| Surface hardness | 7H |
| Energy efficiency scale | A to G |
| Power supply type | External |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Products per pallet | 78 pc(s) |
| Front bezel colour | Black |
| Logistics data | |
| Products per pallet | 78 pc(s) |
| Harmonized System (HS) code | 85285210 |
| Pallet net width | 91 cm |
| Pallet net height | 114 cm |
| Pallet net length | 198.7 cm |
