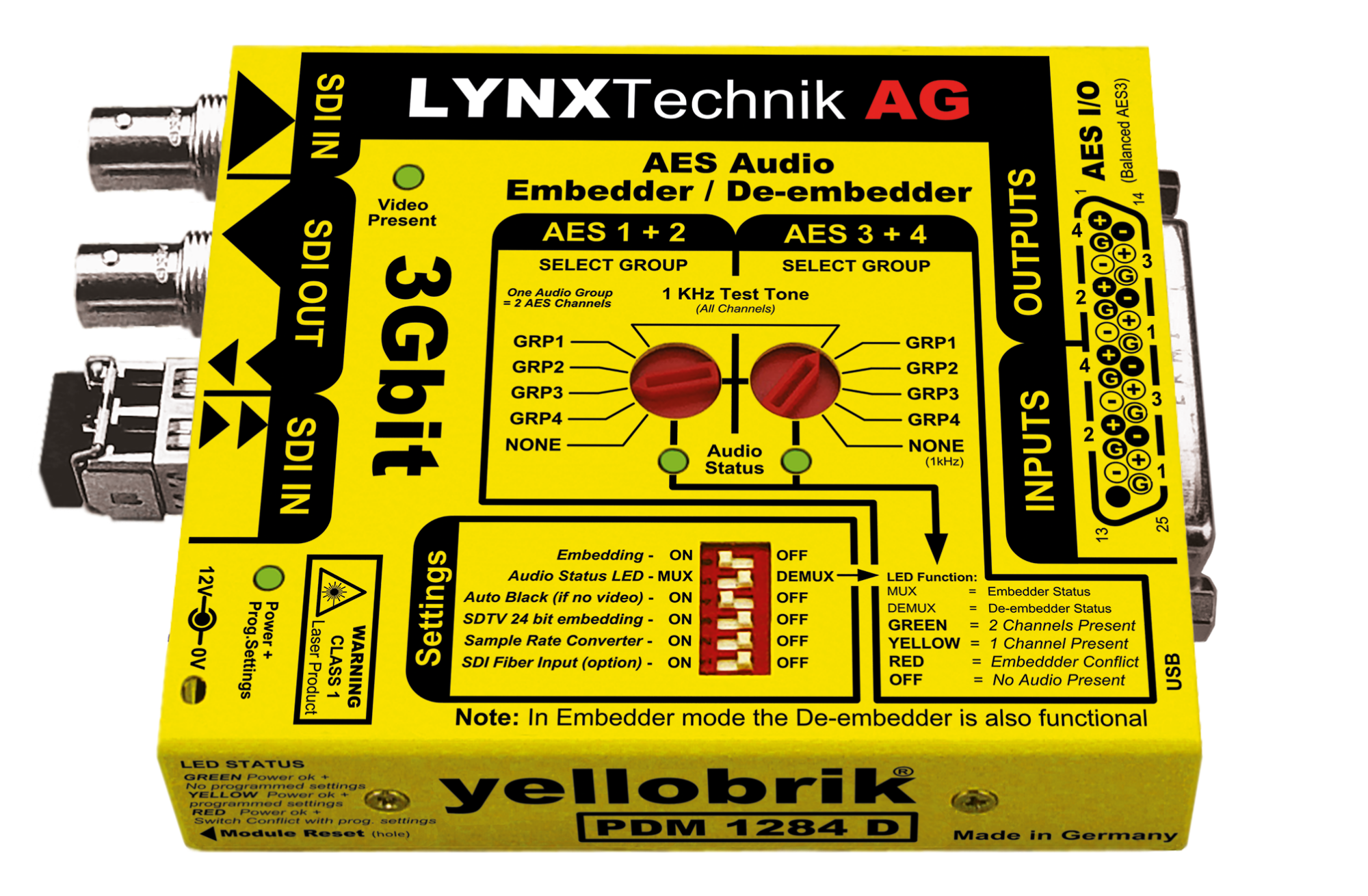

Lynx Technik yellobrik PDM 1284 D AES audio Embedder / De-embedder (balanced AES)

The Yellobrik PDM 1284 D is a versatile AES audio embedder and de-embedder designed to support a wide range of SDI video formats up to 3Gbit/s. It facilitates the embedding and de-embedding of balanced AES3 audio via a 25-pin Sub-D connector, making it suitable for various broadcast applications.

Key Features

• Simultaneous embedding and de-embedding of audio signals
• Supports 3G-SDI Level A and Level B formats
• Compatible with SDI video formats up to 3Gbit/s (1080p60)
• Four AES inputs/outputs with selectable audio groups
• Optional fiber I/O for extended connectivity
• Integrated 1 kHz test tone generator for audio testing
• Automatic detection of PCM and encoded audio formats
• 'Auto black' mode enables audio embedding even without a video source
• Selectable SDTV 24-bit mode
• LED indicators for video and audio presence
• Compatible with yelloGUI for accessing additional internal settings

Technical Specifications

SDI Input

• 1 x SDI video input on 75 Ohm BNC connector
• Compliant with SMPTE 424M, SMPTE 292M, and SMPTE 259M standards
• Supports 3G Level A & B-DL & B-DS according to SMPTE ST 425-1 and ST 425-2 (3D) with image formats 1280 x 720 and 1920 x 1080

SDI Output

• 1 x SDI video output on 75 Ohm BNC connector
• Signal is reclocked

AES Audio Inputs/Outputs

• 4 x AES inputs and 4 x AES outputs (8 mono channels each)
• Balanced AES3 audio via 25-pin Sub-D connector
• Automatic sample rate conversion with bypass option for encoded bitstreams (e.g., DolbyE)
• Input sample rate: 32 - 96kHz
• Input impedance: 110 Ohm
• Frequency response with SRC ON: 0 to 35kHz 0dBFS / Pass Band Ripple 0.025dBFS
• THD+N with SRC ON: -125dB (0dBFS Input, BW = 20Hz to fs/2)
• Dynamic range with SRC ON: 128dB (-60dBFS Input, BW = 20Hz to fs/2, A-Weighted)

Control

• Rotary switches for audio group selection
• Compatible with yelloGUI software for accessing additional internal settings

Power

• +12V DC power input
• Power consumption: 3.0W

Physical

• Dimensions: 105mm x 95mm x 22mm (4.13” x 3.74” x 0.87”)
• Weight: 200g (7.05oz)

Environmental

• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Storage temperature: -30°C to 70°C (-22°F to 158°F)
• Relative humidity: 10% to 90% non-condensing
