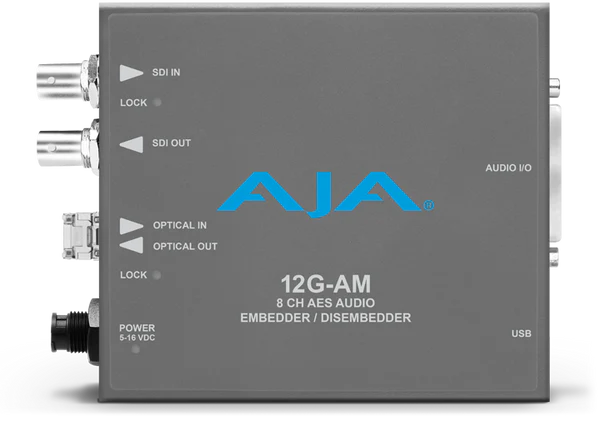

AJA 12G-AM-T 12G-SDI 8-Channel AES Embedder/Disembedder with LC Fiber Tx SFP

The AJA 12G-AM-T is a 12G-SDI 8-channel AES audio embedder/disembedder Mini-Converter supporting input and output up to 4K/UltraHD. It ships with an LC Fiber single channel SFP transmitter for extending high-bandwidth video and audio signals over long distances. Designed for professional broadcast and production workflows, it provides simultaneous AES audio embedding and disembedding with flexible configuration options.

Key Features:

• 12G-SDI Support: Input and output up to 4K/UltraHD over a single link.
• 8-Channel AES Audio: Balanced AES audio embedder/disembedder functionality.
• LC Fiber Transmitter: Ships with a single channel LC Fiber SFP transmitter for long-distance signal extension.
• AES Disembedding: Always functional with four AES outputs.
• AES Embedding: User-selectable on a channel pair basis to pass 12G-SDI input audio or embed AES audio.
• Selectable AES Audio Levels: Supports configurable AES audio levels.
• HDR Support: Supports HDR pass-through.
• Automatic Input Detection: Automatically detects and configures the input video standard.
• Compact Form Factor: Small size allows for a wide variety of installation locations.
• XLR Breakout Cable: Supplied cable offers 8-channel input and 8-channel output over XLR connectors.
• USB Connectivity: Configure via AJA Mini-Config software.
• DIP Switch Configuration: Simple onboard setup and control.
• Power: 5–16 VDC input.
• Warranty: Five-year warranty.

Specifications:

• Video Input/Output: 12G-SDI up to 4K/UltraHD.
• Audio: 8-channel balanced AES audio.
• Fibre: LC Fiber Tx SFP (ships with unit).
• Power: 5–16 VDC.

Important Notes:

• AES disembedding is always functional.
• Embedding is selectable per channel pair.
• Refer to official AJA documentation for full operational details.
