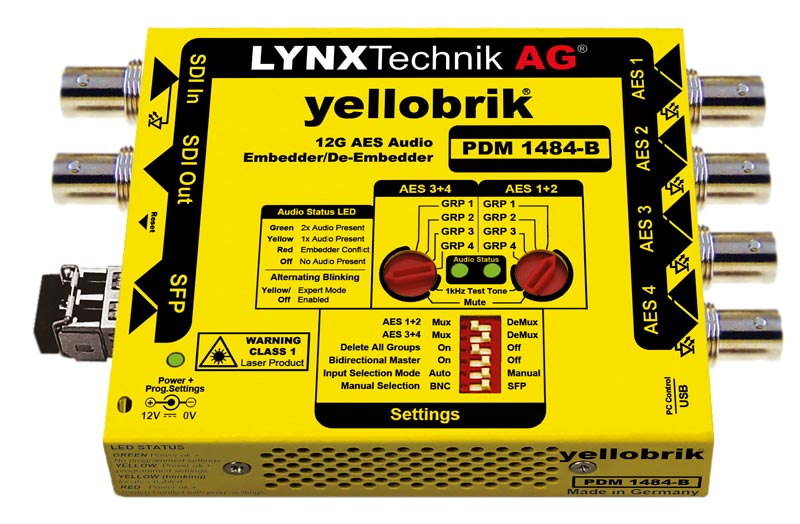

Lynx Technik yellobrik PDM 1484 B AES Audio Embedder / De-embedder (unbalanced AES)

The PDM 1484 B is a multifunctional AES audio embedder and de-embedder supporting a wide range of SDI video formats up to 12G-SDI. It accommodates unbalanced AES3id audio inputs and outputs via 75 Ohm BNC connections. Users can select audio groups using rotary switches, and additional audio groups can be managed by cascading multiple modules. The module's simultaneous embedding and de-embedding capability allows it to de-embed and output audio from a selected group before overwriting it with new audio if necessary. It automatically detects audio formats and deactivates sample rate converters to preserve encoded bit streams like DolbyE. The "auto black" mode generates a black video frame if no SDI input is present, enabling audio embedding even without a video source—a useful feature for audio-only applications. An integrated 1 kHz test tone generator facilitates audio testing. The module is compatible with LynxCentraal and yelloGUI software, providing access to additional internal settings, including manual insertion of metadata such as AFD, WSS, and VI

Key Features

• Supports 12G / 6G / 3G / 1.5G / SD-SDI
• Multifunctional use as an embedder or de-embedder
• Ideal as a bidirectional master
• 3G-SDI Level A and Level B support
• SDI video formats up to 12Gbit (2160p60)
• 4 x AES inputs or outputs with selectable audio groups
• Fiber I/O option for long-distance transmission
• Integrated 1 kHz test tone generator
• Automatic PCM / encoded audio detection
• "Auto black" if no video is present
• Selectable SDTV 24-bit mode
• Video and audio present LED indicators
• Compatible with LynxCentraal & yelloGUI for additional internal settings

Supported Video Formats

• (UHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (3G) 1920x1080p 50, 59.94, 60
• (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
• (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920x1080i 50, 59.94, 60
• (HD) 1280x720p 50, 59.94, 60
• (SD) 720x576i
• (SD) 720x480i
• YCbCr 4:2:2
• 10-bit

Video Input

• 1 x 12G-SDI BNC, compliant with SMPTE-259M/292M/424M/2081-1/2082-1
• Supports single-link SD/HD/3G/UHD

Ordering Information

• PDM 1484 B: AES Audio Embedder / De-embedder (unbalanced AES)
• RFR 1200: High power yellobrik 19” 1RU Rack Frame
• RAC F25-8: Audio Breakout cable 25 D-Sub to 8 x Female XLR
• RAC M25-8: Audio Breakout Cable 25 D-Sub to 8 x Male XLR
• RAC MF15-4: D-Sub 15 to 2 Male / 2 Female XLR Audio Cable
• RAC MF25-4/4: D-Sub 25 to 4 Male / 4 Female XLR Audio Cable
