AJA OG-12GDA-2x4 openGear Dual 1x4 12G-SDI Distribution Amplifier

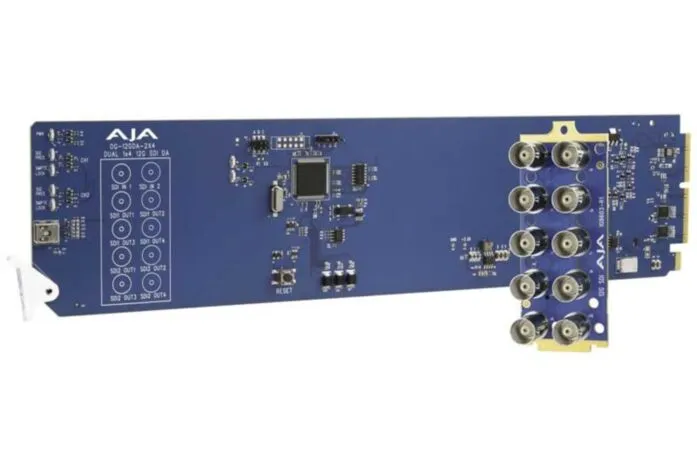

AJA OG-12GDA-2x4 - Dual 1x4 12G-SDI openGear Distribution Amplifier Overview The AJA OG-12GDA-2x4 is a state-of-the-art, openGear-compatible dual 1x4 12G-SDI distribution amplifier designed to meet the demands of high-resolution video distribution. With two independent 12G-SDI inputs, each providing four reclocked outputs, the OG-12GDA-2x4 offers a compact and efficient solution for distributing ultra-high-definition video signals in broadcast and production environments. Key Features

• Dual 1x4 12G-SDI distribution amplifiers in a single openGear card
• Two independent 12G-SDI inputs with automatic input equalization
• Four non-inverting 12G-SDI reclocked outputs per channel
• Supports video formats ranging from 270 Mbps to 12 Gbps
• Passes embedded audio and all ancillary data, including closed captions and timecode
• Input Present and Input SMPTE Lock LEDs for signal monitoring
• Includes 10x 12G-BNC rear connector module
• Compatible with openGear 2RU frames, such as AJA's OG-X-FR
• DashBoard software support for remote control and monitoring on Windows, macOS, and Linux
• Hot-swappable design with a power consumption of 4.5 watts
• Five-year warranty

Description The AJA OG-12GDA-2x4 distribution amplifier is engineered to provide reliable and high-quality 12G-SDI signal distribution within the openGear modular frame system. Each of the two independent input channels automatically equalizes incoming signals, ensuring optimal signal integrity over longer cable runs. The four reclocked outputs per channel maintain the quality and stability of the distributed signals, making the OG-12GDA-2x4 an excellent choice for professional video workflows requiring high-bandwidth signal distribution. Designed for versatility, the OG-12GDA-2x4 supports a wide range of video formats, from standard definition to ultra-high-definition 12G-SDI signals, and is format-agnostic between 270 Mbps and 12 Gbps. This flexibility allows it to seamlessly integrate into various production setups, accommodating different signal requirements without the need for additional equipment. The inclusion of DashBoard software support enables users to remotely control and monitor the OG-12GDA-2x4 from any platform, including Windows, macOS, and Linux. This feature provides convenient access to configuration settings and real-time monitoring, facilitating efficient management of the signal distribution infrastructure. Installation is straightforward, with the OG-12GDA-2x4 designed to fit into standard openGear 2RU frames, such as AJA's OG-X-FR. The hot-swappable design ensures that the unit can be replaced or maintained without disrupting the entire system, and the low power consumption of 4.5 watts contributes to energy-efficient operation. Technical Specifications

• Video Inputs:
  • 2x 12G-SDI BNC connectors
  • Automatic cable equalization
• Video Outputs:
  • 8x 12G-SDI BNC connectors (4 per input channel)
  • Reclocked outputs
• Supported Video Formats:
  • 270 Mbps to 12 Gbps, format-agnostic
• Control and Monitoring:
  • DashBoard software support for remote control and monitoring
  • Input Present and Input SMPTE Lock LEDs
• Physical:
  • Compatible with openGear 2RU frames
  • Includes 10x 12G-BNC rear connector module
  • Hot-swappable design
• Power Consumption: 4.5 watts
• Warranty: Five years

The AJA OG-12GDA-2x4 combines advanced features, robust performance, and flexible integration options, making it an ideal solution for professionals seeking efficient and reliable 12G-SDI signal distribution within the openGear framework.
