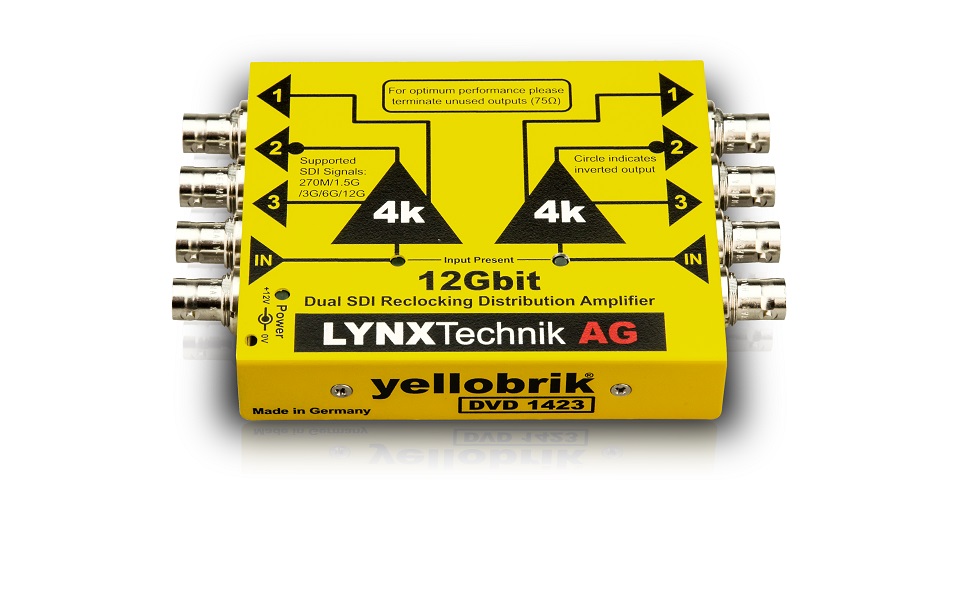

Lynx Technik yellobrik DVD 1423 12G SDI 2x 1>3 Distribution Amplifier

The DVD 1423 is a compact 12G SDI distribution amplifier designed for professional broadcast and production environments. It features two independent inputs, each with three outputs, supporting SDI video formats up to 12Gbit/s, including 4K/UHD. The module automatically detects input formats and reclocks all outputs, ensuring signal integrity across all channels.

Key Features

• Two independent SDI inputs
• Three outputs per channel
• Supports SDI video up to 12Gbit/s (4K/UHD)
• Compatible with SD SDI, HD SDI, 3G SDI, 6G SDI, and 12G SDI
• Automatic input format detection
• Reclocking on all outputs
• Input present LED indication

Technical Specifications

Video Input Digital

• 2 x 12G-SDI BNC, compliant with SMPTE-259M/292M/424M/2081-1/2082-1
• Supports Single Link SD/HD/3G/4K UHD
• Supported formats:
  • UHD (3840x2160p) at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
  • 3G (1920x1080p) at 50, 59.94, 60 fps
  • HD (1920x1080p) at 23.98, 24, 25, 29.97, 30 fps
  • HD (1920x1080PsF) at 23.98, 24, 25, 29.97, 30 fps
  • HD (1920x1080i) at 50, 59.94, 60 fps
  • HD (1280x720p) at 50, 59.94, 60 fps
  • SD (720x576i, 720x480i)

Video Output Digital

• 6 x 12G-SDI BNC (3 outputs per channel), compliant with SMPTE-259M/292M/424M/2081-1/2082-1
• Supports Single Link SD/HD/3G/4K UHD
• Output formats mirror input formats

Reclocking

• Automatic reclocking for all standard SDI rates
• Ensures signal integrity over long cable runs

Power Requirements

• Input Voltage: +12V DC nominal (supports 7 - 16V DC input range)
• Power Consumption: 3.3W nominal

Physical Characteristics

• Dimensions (including connectors): 138mm x 90mm x 22mm (5.43” x 3.54” x 0.86”)
• Weight: 240g (8.46oz)
• Operating Temperature: 5°C to 40°C (41°F to 104°F)
• Humidity: Up to 90% (non-condensing)
