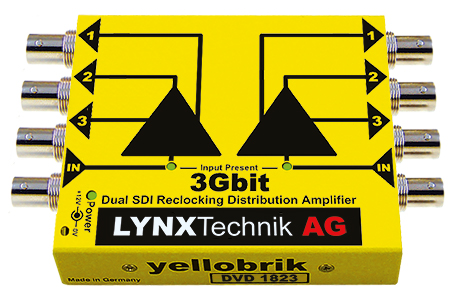

Lynx Technik yellobrik DVD 1823 Dual Channel 1>3 SDI Distribution Amplifier

The DVD 1823 is a versatile, dual-channel reclocking SDI distribution amplifier suitable for distributing any Level A or Level B SDI video signal up to 3Gbit/s (1080p60), including DVB-ASI signals. Each channel provides one input and three outputs, ensuring reliable signal distribution for various broadcast applications. The module supports SMPTE 424M (3Gbit/s), SMPTE 292M (1.5Gbit/s), and SMPTE 259M (270Mbit/s) standards, making it compatible with a wide range of SDI formats. Additionally, the DVD 1823 features auto-detect input format functionality and input presence LED indicators for each channel, facilitating easy monitoring and operation.

Key Features

• Dual-channel operation
• 1 input and 3 outputs per channel
• Supports SDI video signals up to 3Gbit/s (1080p60)
• Compatible with Level A and Level B formats, as well as DVB-ASI
• Reclocking functionality for signal integrity
• Auto-detect input format
• Input presence LED indication for each channel

Technical Specifications

SDI Video Inputs

• 2 x SDI video inputs (one per channel)
• 75 Ohm BNC connectors
• Supported standards: SMPTE 424M (3Gbit/s), SMPTE 292M (1.5Gbit/s), SMPTE 259M (270Mbit/s), DVB-ASI
• Automatic cable equalization:
  • Up to 340m at 270Mbit/s
  • Up to 150m at 1.5Gbit/s
  • Up to 120m at 3Gbit/s

SDI Video Outputs

• 6 x SDI video outputs (three per channel)
• 75 Ohm BNC connectors

Power Requirements

• Input voltage: +12V DC
• Power consumption: approximately 2.0W
• Supports 7 - 24V DC input range

Physical Characteristics

• Dimensions: 105 mm x 95 mm x 22 mm (4.13” x 3.74” x 0.87”)
• Weight: 200 g (7.05 oz)
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Humidity: 0% to 90% (non-condensing)
