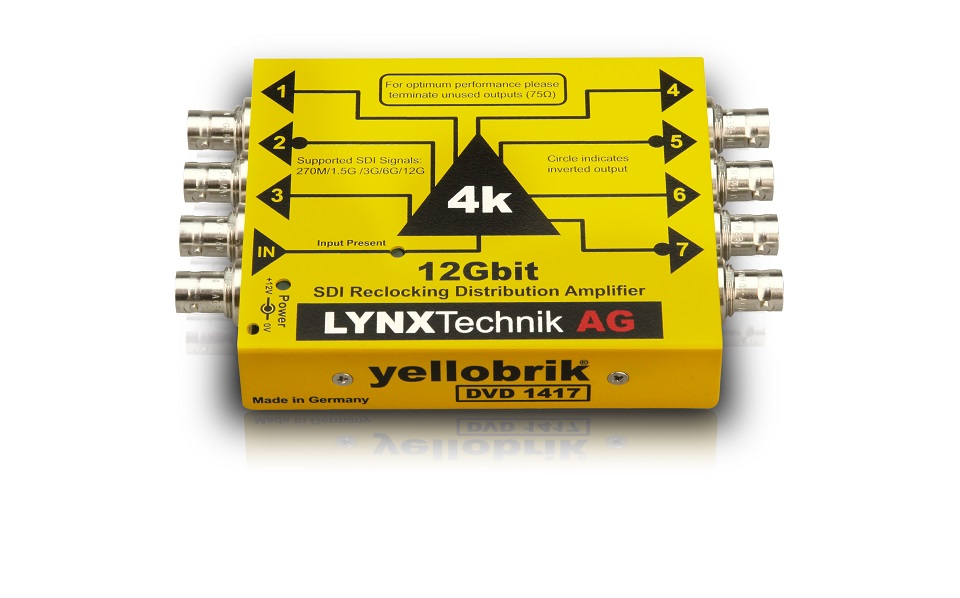

Lynx Technik yellobrik DVD 1417 12G SDI 1>7 Distribution Amplifier

The DVD 1417 addresses the need for reliable distribution of high-bandwidth SDI signals across multiple outputs. Its ability to handle signals up to 12Gbit/s makes it suitable for modern broadcast environments requiring 4K/UHD content distribution. The module features one SDI input and seven reclocked SDI outputs, ensuring signal integrity across all outputs. It supports a wide range of video formats, including SD, HD, 3G, 6G, and 12G SDI, making it a versatile solution for various signal distribution requirements. The compact design allows for easy integration into existing setups, and its compatibility with optional mounting solutions enhances flexibility in installation. :contentReference[oaicite:4]{index=4}

Key Features

• One SDI input and seven reclocked SDI outputs
• Supports SDI video signals up to 12Gbit/s (4K/UHD)
• Compatible with SD SDI, HD SDI, 3G SDI, 6G SDI, and 12G SDI formats
• Automatic input format detection
• Reclocking of all outputs to maintain signal integrity
• Input present LED indication for easy monitoring

Technical Specifications

Video Input

• 1 x 12G-SDI BNC input
• Standards: SMPTE-259M, SMPTE-292M, SMPTE-424M, SMPTE-2081-1, SMPTE-2082-1
• Supported formats:
  • UHD: 3840x2160p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
  • 3G: 1920x1080p at 50, 59.94, 60 fps (Single Link 3G-SDI Level A, Level B)
  • HD: 1920x1080p at 23.98, 24, 25, 29.97, 30 fps
  • HD: 1920x1080PsF at 23.98, 24, 25, 29.97, 30 fps
  • HD: 1920x1080i at 50, 59.94, 60 fps
  • HD: 1280x720p at 50, 59.94, 60 fps
  • SD: 720x576i, 720x480i
• Color space: YCbCr 4:2:2, 10-bit

Video Outputs

• 7 x 12G-SDI BNC outputs
• Standards: SMPTE-259M, SMPTE-292M, SMPTE-424M, SMPTE-2081-1, SMPTE-2082-1
• All outputs are reclocked to maintain signal integrity

Performance

• Electrical Return Loss:
  • >15dB from 5MHz to 1.5GHz
  • >10dB from 1.5GHz to 3GHz
  • >7dB from 3GHz to 6GHz
  • >4dB from 6GHz to 12GHz
• Alignment Jitter:
  • <0.2 UI at 270Mbit/s
  • <0.2 UI at 1.5Gbit/s
  • <0.3 UI at 3Gbit/s, 6Gbit/s, 12Gbit/s
• Automatic Cable Equalization:
  • 320m at 270Mbit/s (Belden 1694A cable)
  • 200m at 1.5Gbit/s (Belden 1694A cable)
  • 150m at 3Gbit/s (Belden 1694A cable)
  • 90m at 6Gbit/s (Belden 4794R cable)
  • 80m at 12Gbit/s (Belden 4794R cable)

Power Requirements

• Input voltage: +12V DC (supports 7 - 16V DC input range)
• Power consumption: Approximately 2.7W nominal

Physical Characteristics

• Dimensions: 138mm x 90mm x 22mm (5.43” x 3.54” x 0.86”) including connectors
• Weight: 240g (8.46oz)
• Operating temperature: 5°C to 40°C (41°F to 104°F)
• Humidity: Up to 90% (non-condensing)

Ordering Information

• DVD 1417: 12G SDI 1:7 Distribution Amplifier
• P-TAP 1000: P-TAP Battery Adapter Cable
• RFR 1200: High-power yellobrik 19” 1RU Rack Frame
• XLR 1000: 4 Pin XLR Camera Battery Adapter Cable
• RFR 1001: yellobrik Mounting Bracket
