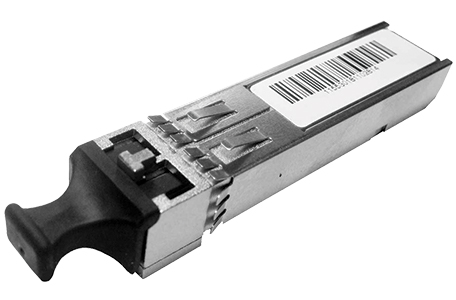

Lynx Technik 12G-SDI Optical Transceiver SFP Module (SM, 1310nm, LC connectors, 10Km)

The OH-TR-12G-LC is a 12G SDI optical transceiver designed as a plug-in option for select LYNX Technik yellobrik and greenMachine products. This Small Form-factor Pluggable (SFP) module facilitates the conversion of electrical SDI signals into optical signals for transmission over fiber and vice versa, supporting various SDI formats to ensure high-quality signal integrity over extended distances.

Key Features

• Multi-rate optical transceiver compatible with 12G-SDI, 6G-SDI, 3G-SDI, and HD-SDI signals
• Supports SMPTE standards: 2082M, 424M, and 292M
• Transmitter wavelength: 1310nm (single-mode)
• Receiver wavelength range: 1260nm to 1620nm
• Utilizes LC duplex fiber connections
• Suitable for transmission distances up to 10km over single-mode fiber
• Designed for use with yellobrik and greenMachine product lines
• Pluggable and hot-swappable for easy installation and maintenance
• Lead-free and RoHS compliant

Technical Specifications

Optical Characteristics

• Transmitter wavelength: 1310nm
• Receiver wavelength range: 1260nm to 1620nm
• Transmission distance: Up to 10km over single-mode fiber

Supported SDI Signal Rates

• 1.5Gbit/s (HD-SDI)
• 3Gbit/s (3G-SDI)
• 6Gbit/s (6G-SDI)
• 12Gbit/s (12G-SDI)

Connector Type

• LC duplex connector (single-mode fiber)

Compatibility

• Compatible with select LYNX Technik yellobrik and greenMachine products equipped with SFP slots

Compliance

• Lead-free and RoHS compliant
