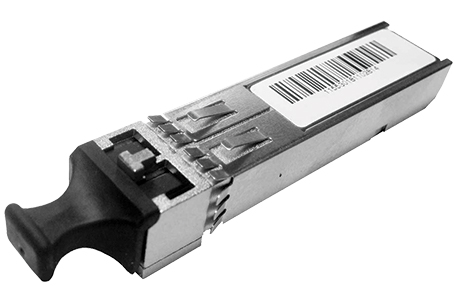

Lynx Technik 3G-SDI Optical Transceiver SFP Module (SM, 1310nm, LC connectors, 10Km)

The OH-TR-1-LC transceiver enhances the flexibility of broadcast and professional video applications by enabling long-distance transmission of uncompressed SDI signals over fiber optic cables. Its dual-functionality as both a transmitter and receiver simplifies system architecture, reducing the need for multiple modules. The module supports SMPTE standards 424M, 292M, 259M, and DVB-ASI, ensuring compatibility with a wide range of SDI formats. The LC duplex fiber connections facilitate easy integration into existing infrastructures, and its pluggable, hot-swappable design allows for effortless installation and maintenance without disrupting system operations.

Key Features

• SDI multi-rate optical transceiver supporting 3G-SDI, HD-SDI, and SD-SDI signals
• Integrated receiver and transmitter in a single module
• Supports SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI standards
• 1310nm fixed transmission wavelength for single-mode fiber
• LC duplex fiber connections for reliable connectivity
• Compatible with receive wavelengths from 1260nm to 1620nm (ITU-T G694.2)
• Supports transmission distances up to 10 km (6.2 miles)
• Designed for use with yellobrik and Series 5000 product lines
• Pluggable and hot-swappable for easy installation and maintenance
• Lead-free and RoHS compliant, adhering to environmental standards

Technical Specifications

Transmitter Specifications

• Intrinsic Jitter:
  • 2.97 Gbit/s: Typical 45 ps, Maximum 80 ps
  • 1.485 Gbit/s: Typical 45 ps, Maximum 80 ps
  • 270 Mbit/s: Typical 45 ps, Maximum 80 ps
• Wavelength: Minimum 1290nm, Typical 1310nm, Maximum 1330nm
• Optical Power: Minimum -8dBm, Typical -5dBm, Maximum -3dBm
• Linear Extinction Ratio: Minimum 5.0, Typical 8.0

Receiver Specifications

• Data Rates Supported:
  • 270 Mbit/s (SD-SDI)
  • 1.485 Gbit/s (HD-SDI)
  • 2.97 Gbit/s (3G-SDI)
• Wavelength Range: 1260nm to 1620nm
• Receiver Sensitivity:
  • -19dBm for 2.97 Gbit/s
  • -19dBm for 1.485 Gbit/s
  • -19dBm for 270 Mbit/s
• Maximum Input Power (Overload): -1dBm
• Loss of Signal Asserted: -35dBm
• Loss of Signal De-Asserted: -19dBm
• Optical Hysteresis: 0.5dBm to 2dBm

General Specifications

• Operating Temperature Range: 5ºC to 40ºC
• Power Supply Voltage: 3.1VDC to 3.5VDC
• Power Consumption: Typical 200mA, Maximum 300mA
• Humidity: Up to 90% (non-condensing)
• Dimensions (excluding connector): 57mm x 13.4mm x 12.4mm
• Weight: 50g
• SFP Connector Pinning: MSA compliant
• Fiber Connections: LC duplex (single-mode)

Ordering Information

• OH-TR-1-LC: 3Gbit SDI Optical Transceiver - TX:1310nm - RX:1260nm to 1620nm
