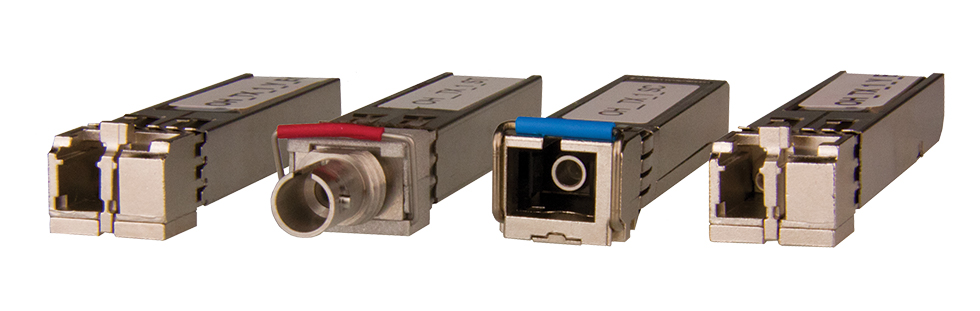

Lynx Technik 3G-SDI Single Optical Transmitter SFP Module (SM, 1310nm, ST connector, 10Km)

The OH-TX-1-Y-ST SDI optical transmitter is an integrated or plug-in option for select LYNX Technik products. This SFP module facilitates the conversion of electrical SDI signals into optical signals for transmission over single-mode fiber. Operating at a fixed 1310nm wavelength, it supports transmission distances up to 10 kilometers, accommodating SDI signals at 270Mbit/s, 1.485Gbit/s, and 2.97Gbit/s, conforming to SMPTE 424M, 292M, 259M, and DVB-ASI standards. The module is hot-swappable, allowing for easy installation or upgrade without disrupting system operations.

Key Features

• SDI multi-rate optical transmitter supporting 3G-SDI, HD-SDI, and SD-SDI signals
• Compliant with SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI standards
• Fixed 1310nm wavelength (non-CWDM)
• Supports transmission distances up to 10 kilometers over single-mode fiber
• Compatible with yellobrik and Series 5000 product lines
• Pluggable and hot-swappable design for easy installation and maintenance
• Equipped with an ST connector for single-mode fiber connections
• Lead-free and RoHS compliant

Technical Specifications

Transmitter Specifications

• Intrinsic Jitter:
  • 2.97 Gbit/s: Typical 45 ps, Maximum 80 ps
  • 1.485 Gbit/s: Typical 45 ps, Maximum 80 ps
  • 270 Mbit/s: Typical 45 ps, Maximum 80 ps
• Wavelength: Minimum 1290nm, Typical 1310nm, Maximum 1330nm
• Optical Power: Minimum -8dBm, Typical -5dBm, Maximum -3dBm
• Linear Extinction Ratio: Minimum 5.0, Typical 8.0

General Specifications

• Operating Temperature Range: 5ºC to 40ºC
• Power Supply Voltage: 3.1 VDC to 3.5 VDC
• Power Consumption: Typical 130mA, Maximum 180mA
• Humidity: Up to 90% (non-condensing)
• Dimensions (excluding connector): 57mm x 13.4mm x 12.4mm
• Weight: 50g
• SFP Connector Pinning: MSA compliant
• Fiber Connections: ST simplex (single-mode)

Ordering Information

• OH-TX-1-Y-ST: 3G SDI Fiber Transmitter - ST connector - 10km (No DDMI support)
