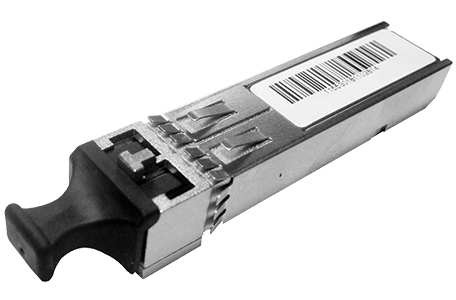

Lynx Technik yellobrik OH-BD-1-1550-LC Bidirectional (Single Fiber) Transceiver

The OH-BD-1-1550-LC SDI bidirectional optical transceiver is an integrated part or plug-in option for select LYNX Technik yellobrik and Series 5000 products. This SFP module transmits an optical SDI signal and also receives an optical SDI signal over a single fiber link. The transmit wavelength is fixed at 1550nm, suitable for distances up to 10km**, and the receive wavelength ranges between 1480nm and 1600nm. The module accommodates 270Mbit/s, 1.485Gbit/s, and 2.97Gbit/s SDI signals conforming to SMPTE 424M, 292M, 259M, and DVB-ASI standards. A socket, or “cage,” is provided for the SFP in the supporting LYNX product for easy installation or upgrade, and the SFP is hot-swappable. This SFP is typically used in simple WDM closed-loop point-to-point applications and is intended to be paired with the OH-BD-1-1310-LC SFP at the other end of the fiber link. **Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of fiber cable and accumulated optical losses in the fiber link. Determine link losses and perform optical budget calculations to ensure correct operation.

Key Features

• SDI multi-rate optical bidirectional transceiver for 3G-SDI, HD-SDI, and SD-SDI signals
• 1-port bidirectional operation over single fiber (single-mode)
• Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
• 1550nm TX Wavelength / 1480nm to 1600nm RX Wavelength
• Suitable for distances up to 10km**
• Compatible with yellobrik, greenMachine, and Series 5000 product lines
• Pluggable and hot-swappable design
• Lead-free and RoHS compliant

Technical Specifications

Transmitter Specifications

• Wavelength: Minimum 1530nm, Typical 1550nm, Maximum 1570nm
• Optical Power: Minimum -8dBm, Typical -5dBm, Maximum -3dBm
• Linear Extinction Ratio: Minimum 5.0, Typical 8.0

Receiver Specifications

• Wavelength: Minimum 1480nm, Maximum 1600nm
• Receiver Sensitivity:
  • 2.97 Gbit/s: -16 dBm
  • 1.485 Gbit/s: -16 dBm
  • 270 Mbit/s: -16 dBm
• Overload: Maximum -3 dBm
• Loss of Signal Asserted: Maximum -35 dBm
• Loss of Signal De-Asserted: Maximum -16 dBm
• Optical Hysteresis: Minimum 0.5 dB, Maximum 2 dB

General Specifications

• Operating Temperature Range: 5ºC to 40ºC
• Power Supply Voltage: 3.3VDC
• Power Consumption: Typical 200mA, Maximum 300mA
• Humidity: Up to 90% (non-condensing)
• Dimensions (excluding connector): 57mm x 13.4mm x 12.4mm
• Weight: 50g
• SFP Connector Pinning: MSA compliant
• Fiber Connections: LC simplex (single-mode)

Ordering Information

• OH-BD-1-1550-LC: 3G SDI Bidirectional Fiber Transceiver
