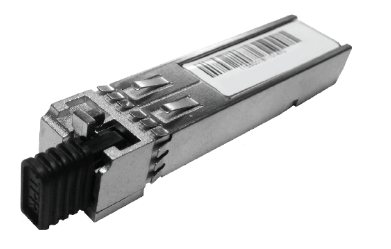

Lynx Technik yellobrik OH-RX-12G-LC 12Gbit SDI Single Optical Receiver

The Yellobrik OH-RX-12G-LC is a versatile 12Gbit SDI single optical receiver designed to convert optical fiber SDI signals into electrical SDI signals. This SFP module supports multi-rate SDI formats, including 12G-SDI, 6G-SDI, 3G-SDI, and HD-SDI, conforming to SMPTE standards 2082, 424M, and 292M. It operates across a wavelength range of 1260nm to 1620nm, making it suitable for various broadcast applications. The module is compatible with LYNX Technik's yellobrik and greenMachine product lines and is both pluggable and hot-swappable for easy installation and maintenance.

Key Features

• SDI multi-rate fiber optic receiver supporting 12G-SDI, 6G-SDI, 3G-SDI, and HD-SDI
• Compliant with SMPTE 2082, SMPTE 424M, and SMPTE 292M standards
• Supports wavelengths from 1260nm to 1620nm
• Compatible with yellobrik and greenMachine product lines
• Pluggable and hot-swappable design
• Equipped with an LC connector for single-mode fiber
• Lead-free and RoHS compliant

Technical Specifications

Optical Receiver

• Receiver sensitivity:
  • 11.88 Gb/s: up to -10dBm
  • 5.94 Gb/s: up to -14dBm
  • 2.97 Gb/s: up to -14dBm
  • 1.485 Gb/s: up to -16dBm
• Wavelength range: 1260nm to 1620nm
• Overload threshold: -2dBm
• Loss of signal assert: -30dBm
• Optical hysteresis: 0.5dB to 2dB
• Operating temperature range: 0ºC to 70ºC

Physical Characteristics

• Fiber connections: LC simplex (single-mode fiber only)
• Hot-swappable SFP module
• Lead-free and RoHS compliant
